Removing Sealing Ring For CARDAN Flange

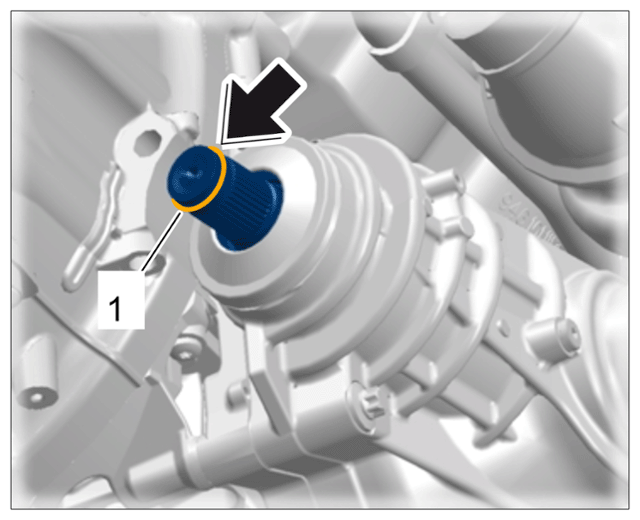

1. Remove circlip -1-  on input flange on all-wheel final drive.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing circlip on input flange on all-wheel final drive

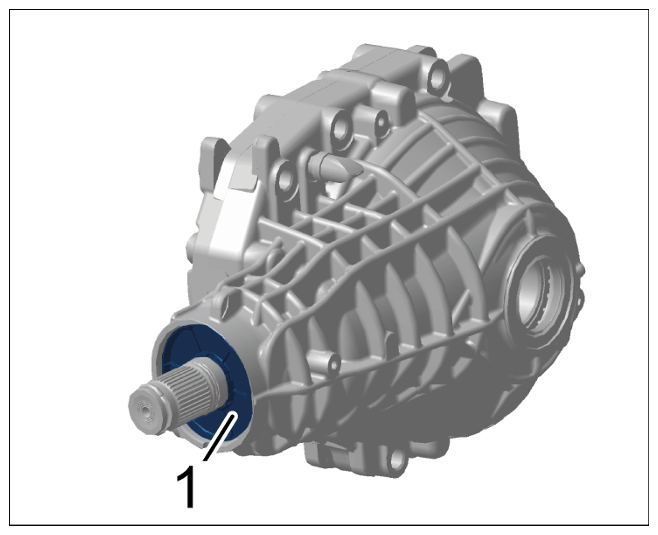

2. Prise off dust boot -1-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Prising off dust boot

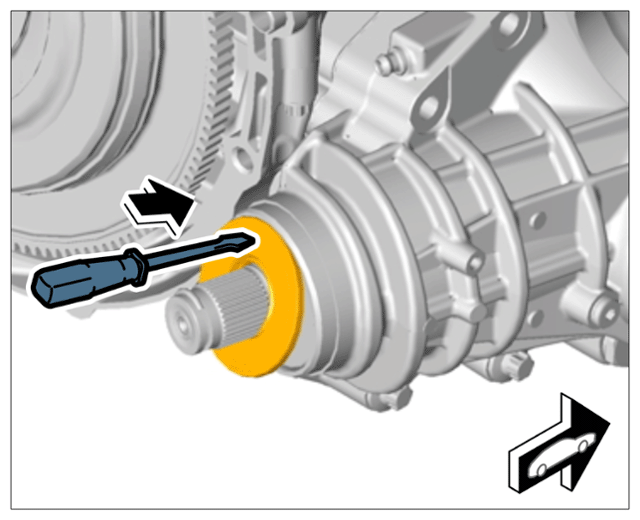

3. Turn sealing ring for cardan flange in slightly at one side -arrow-  until the cardan flange sealing ring tilts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening sealing ring for cardan flange

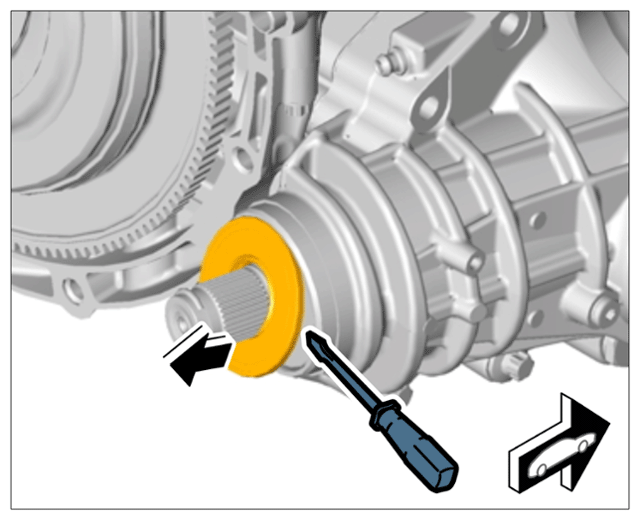

4. Remove cardan flange sealing ring -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sealing ring for cardan flange
