Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove or remove double-clutch transmission.
> 373419 REMOVE AND INSTALL DOUBLE-CLUTCH TRANSMISSION (V6 BITURBO)

> WM, 373427 REMOVING AND MOUNTING DOUBLE CLUTCH TRANSMISSION (V6)
If the engine was removed and the double-clutch transmission removed:
Information

Porsche Doppelkupplung must not be placed on oil pan.

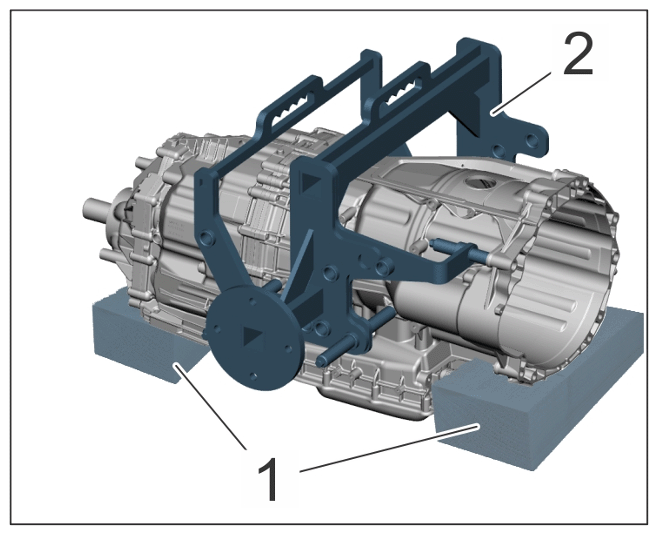

1. 2.1 Place double-clutch transmission with > 9932 - gear support-2- on suitable pieces of wood -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission on wooden blocks
