Removing Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
NOTE:
Dirt and contamination
- Risk of damage to units or components
→ Protect components from dirt and contamination.
→ Clean or replace dirty components.
Information
- The sealing ring on the pressure sensor is pressed on.
- After removing a pressure sensor, the sensor must be replaced.
Information
- The pressure sensors can be diagnosed. As a result, a faulty pressure sensor can be detected in the PIWIS Tester.

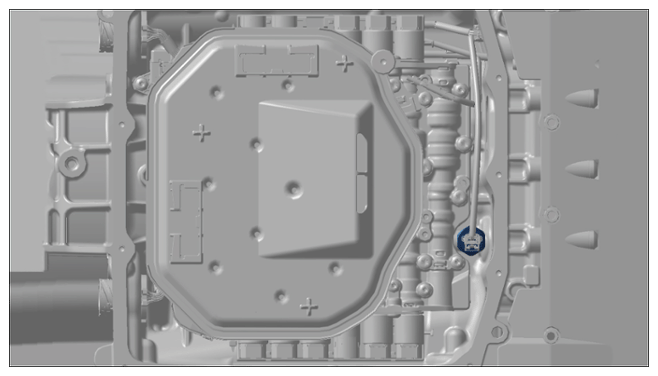

Installation overview of pressure sensor (K3, all-wheel drive vehicles only):

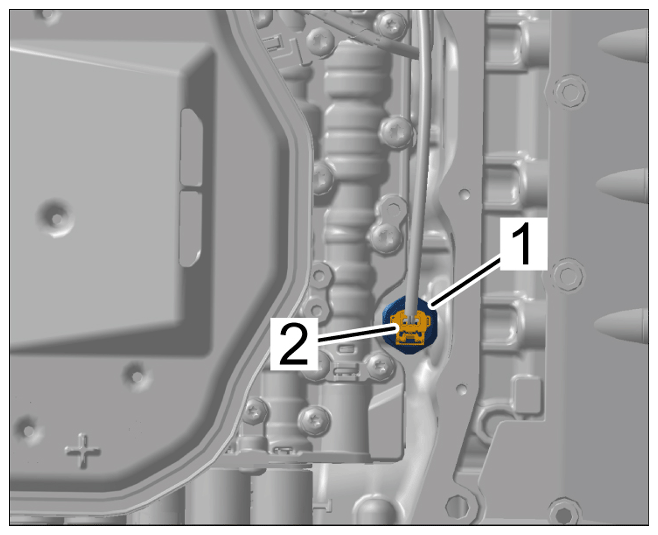

Installation position of pressure sensor
- Remove pressure sensor -1-
.
- 1.1 Release and pull off cable plug -2- .
- 1.2 Loosen pressure sensor -1- and unscrew it by hand.
Pressure sensor in hydraulic space
