Removing Ignition Coils For Cylinders 4 To 6

1. 1.1 Release and disconnect vent line -2-  at the connection and move it forward.
2. 1.2 Release and disconnect vacuum line -1-  at the connection point and move it forward.
3. 1.3 Loosen oxygen sensor line -3-  from cable duct -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line and vacuum line

1. 2.1 Actuate retaining clip -bottom right arrow-  and pull cable duct out of the guide -top right arrow-  .
2. 2.2 Pull cable duct -1-  off ball pins -left arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

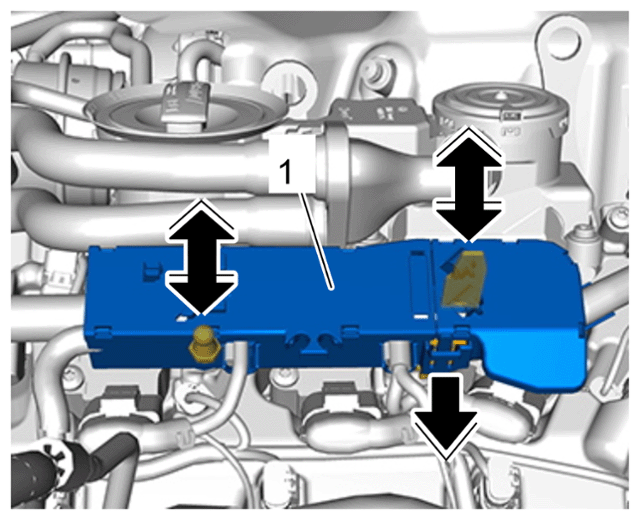

   Releasing cable duct

1. 3.1 Release and pull off cable plug -4-  .
2. 3.2 Loosen and unscrew screw -5-  on the ignition coil.
3. 3.3 Pull off ignition coil -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

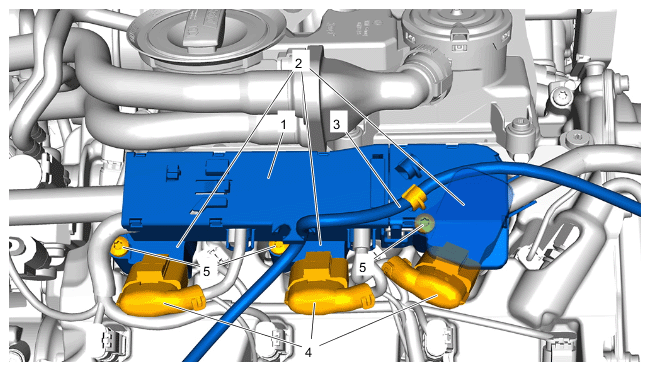

Overview of cylinder bank 2
