Assembly Overview Of Rear Axle Differential

WARNING: This page is about a different variant/trim than selected.

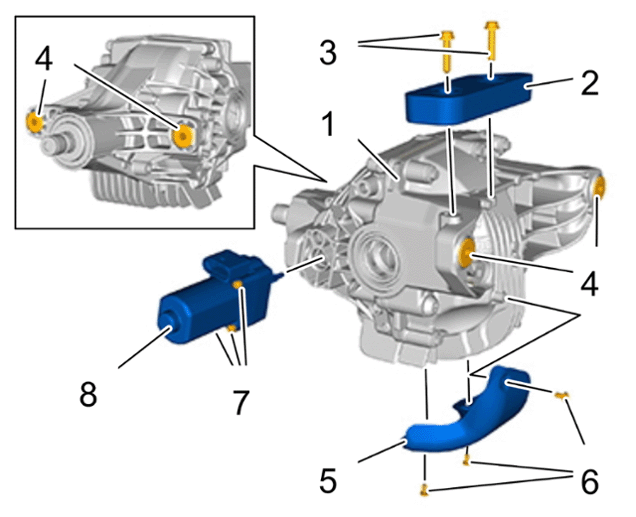

Fig 1: Rear Axle Differential Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly overview of rear axle differential

1	Rear axle differential
2	Vibration balancer (only on diesel models)
3	Screws on vibration balancer/rear axle differential > Tightening torque 15 Nm (11 ftlb.)
4	Screws on rear axle differential/rear axle > Initial tightening 60 Nm (44 ftlb.) > Torque angle 90°
5	Heat shield on rear axle differential
6	Screws for heat shield on rear axle differential > Tightening torque 6 Nm (4.5 ftlb.)
7	Screws for servo motor for rear-differential lock (for allocation, see Parts Information) > Tightening torque 8 Nm (6 ftlb.)
8	Servo motor for rear-differential lock

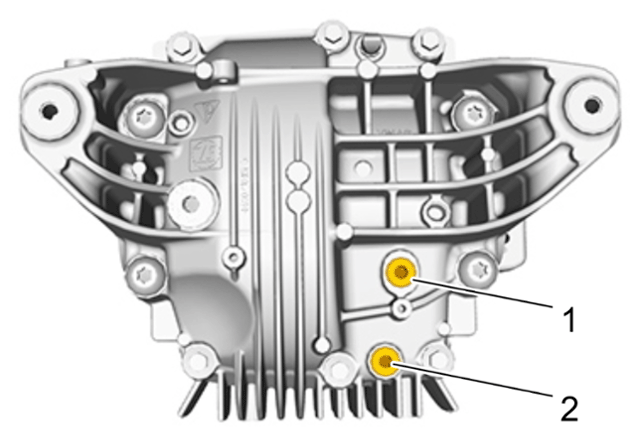

Fig 2: Oil Filler Screw And Oil Drain Plug On Rear Axle Differential Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil filler screw and oil drain plug on rear axle differential

1	Oil filler screw > Tightening torque 35 Nm (26 ftlb.)
2	Oil drain plug > Tightening torque 35 Nm (26 ftlb.)
