Component Overview Of Atf Cooler, Atf Lines

WARNING: This page is about a different variant/trim than selected.

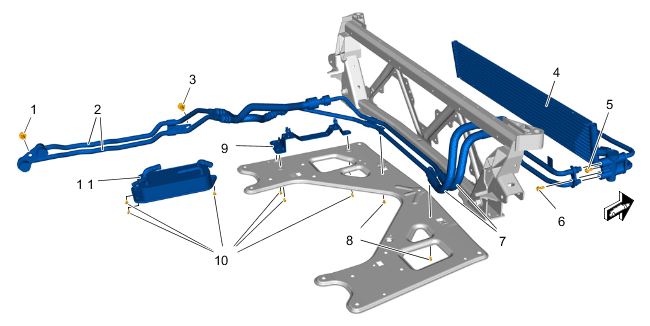

Fig 1: ATF Cooler, ATF Lines Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of ATF cooler, ATF lines

1	Screw for connection point for ATF lines/transmission > Tightening torque 20 Nm (15 ftlb.)
2	Rear ATF lines
3	Screw for ATF lines/transmission > Tightening torque 8 Nm (6 ftlb.)
4-9	Only for vehicles with I-no. A8F or A8H with 0K0
4	ATF cooler
5	Screw for thermostat/radiator assembly > Tightening torque 8 Nm (6 ftlb.)
6	Screw for ATF lines/thermostat > Tightening torque 8 Nm (6 ftlb.)
7	Front ATF lines
8	Screws for decoupling elements/front-axle support > Tightening torque 6 Nm (4.5 ftlb.)
9	Holder for ATF lines
10	Screws for holder for ATF lines or heat exchanger/front-axle support > Tightening torque 8 Nm (6 ftlb.)
11	ATF cooler (heat exchanger) Only for vehicles with I-no. A8C or A8H with 0K3
