Removing Primary Catalytic Converter

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

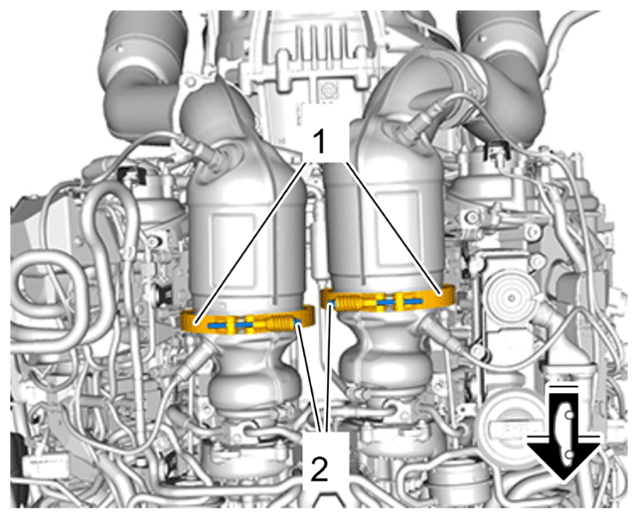

Loosen V-band clamp -1- .
1. 1.1 Loosen screw -2- and relieve tension on V-band clamp -1- .
2. 1.2 Loosen V-band clamp -1- from the turbocharger/catalytic converter flange using a hammer and wedge.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V-band clamps on turbocharger/catalytic converter flange

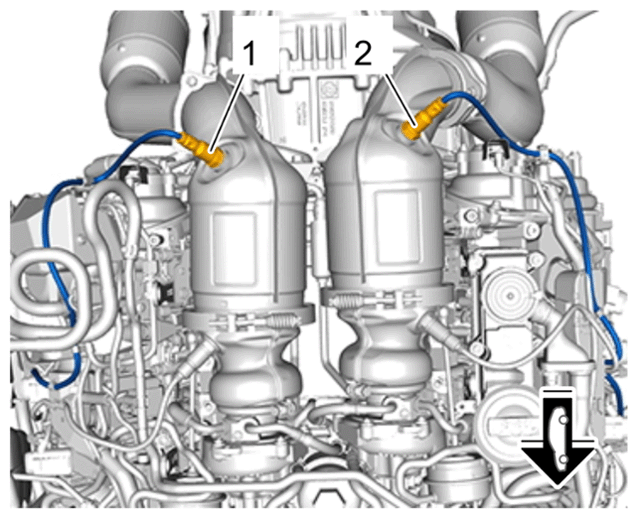

Unscrew oxygen sensors downstream of catalytic converter -1 and 2- .
> WM, 247319 REMOVING AND INSTALLING OXYGEN SENSOR DOWNSTREAM OF CATALYTIC CONVERTER (V6 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensors downstream of catalytic converter

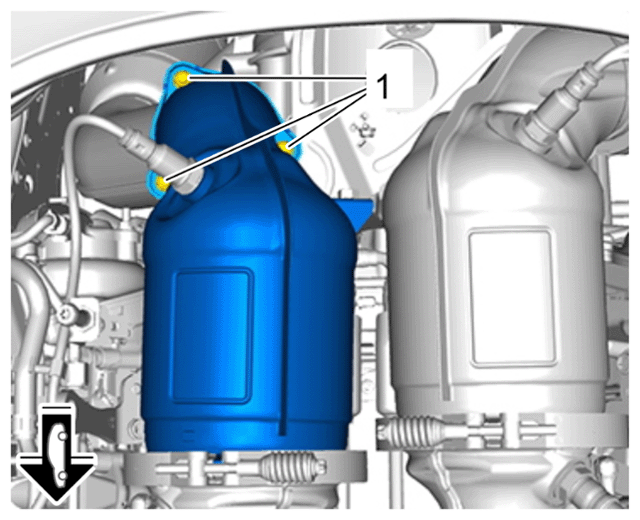

Loosen catalytic converter flange.
1. 3.1 Spray nuts -1- with anti-rust agent if necessary and leave it to take effect.
2. 3.2 Loosen and unscrew nuts -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter flange
From model year 2019

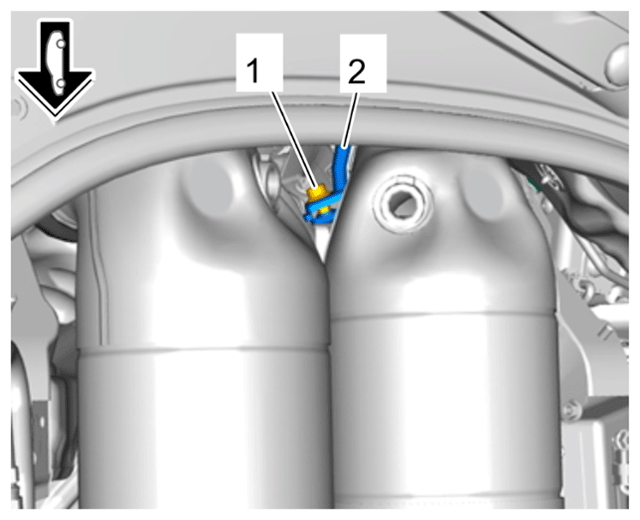

Remove V-band clamp -2- .
1. 4.1 Loosen screw -1- and loosen and remove V-band clamp -2- from the flange.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V-band clamp on catalytic converter

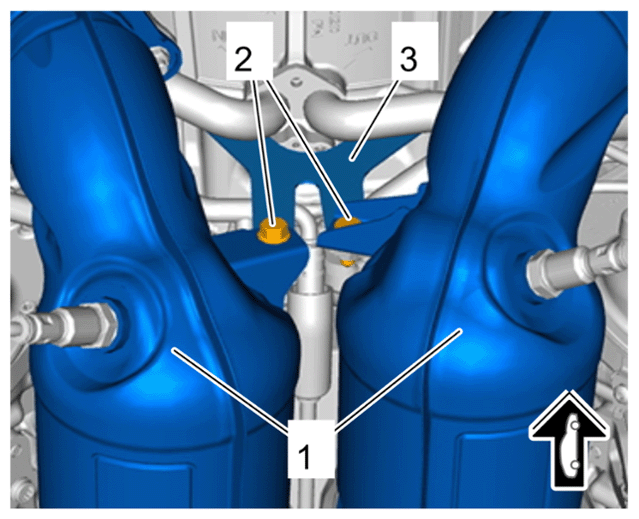

Loosen primary catalytic converter -1- at holder -3- and remove it.
1. 5.1 Unscrew and remove screws -2- .
2. 5.2 Remove primary catalytic converter -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing primary catalytic converter
