Removing Catalytic Converter
WARNING: This page is about a different variant/trim than selected.
- Loosen catalytic converter flange.
- 1.1 Spray nuts -1-
with anti-rust agent if necessary and leave it to work.
- 1.2 Loosen and remove nuts -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Catalytic converter flange
- Loosen and remove ball clamps -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Ball clamps
- Remove catalytic converter.
- 3.1 Remove screw -1-
.
- 3.2 Carefully guide out catalytic converter -4-
at the relevant side.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

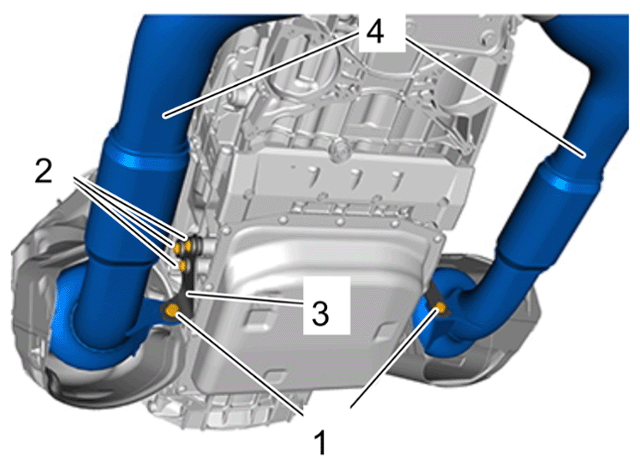

Catalytic converters with brackets (similar to illustration)
