Installing Catalytic Converter
WARNING: This page is about a different variant/trim than selected.
- Install catalytic converter.
- 1.1 Fit new seal on the three-hole flange.
- 1.2 Carefully insert catalytic converter -4-
at the relevant side.
- 1.3 Fit and tighten screw -1-
.
> Tightening torque 23 Nm (17 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

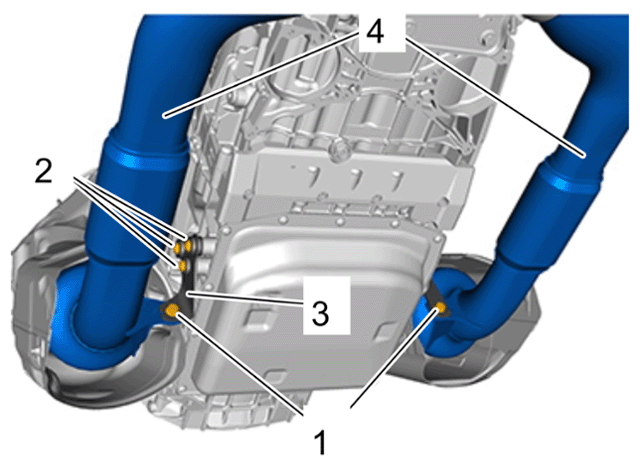

Catalytic converters with brackets (similar to illustration)
- Position new ball clamps -2-
and secure.
> Tightening torque 35 Nm (26 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Ball clamps
- Tighten catalytic converter flange.
- 3.1 Fit and tighten nuts -1-
.
> Tightening torque 23 Nm (17 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

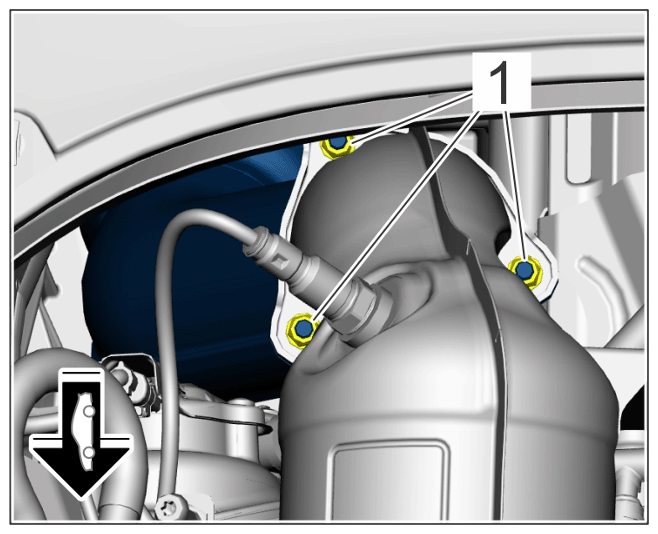

Catalytic converter flange
