Removing Heat Shield On Centre Tunnel

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield on centre tunnel.
    1. 1.1 Loosen and unscrew nuts -1-  and screws -2-  .
    2. 1.2 Remove heat shield on centre tunnel -3 to 5-  .

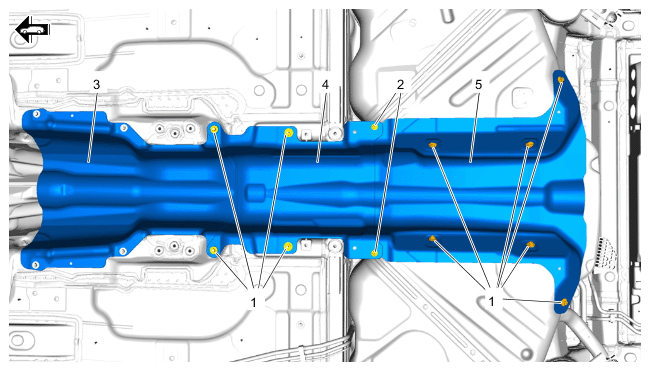

      G15877555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Heat shields on centre tunnel
