Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |
| Fastening screw securing holder on bank 2 to transmission |
|
Tightening torque |
23 Nm (17 ftlb.) |
|
|
| Press-in depth of front drive shaft sealing ring |
Item x |
press-in depth |
6.6 mm |
+/- 0.3 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

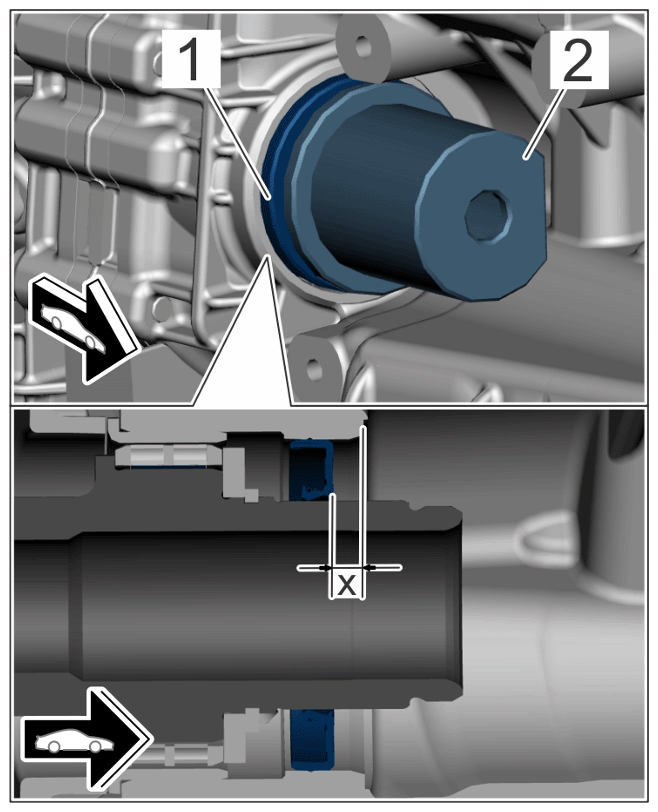

Press-in depth sealing ring
