Subsequent Work

WARNING: This page is about a different variant/trim than selected.

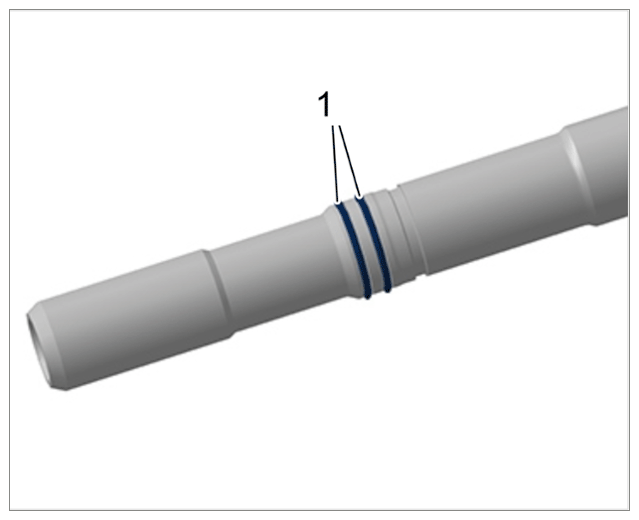

Fit new O-rings -1- on the connecting shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

O-rings on connecting shaft

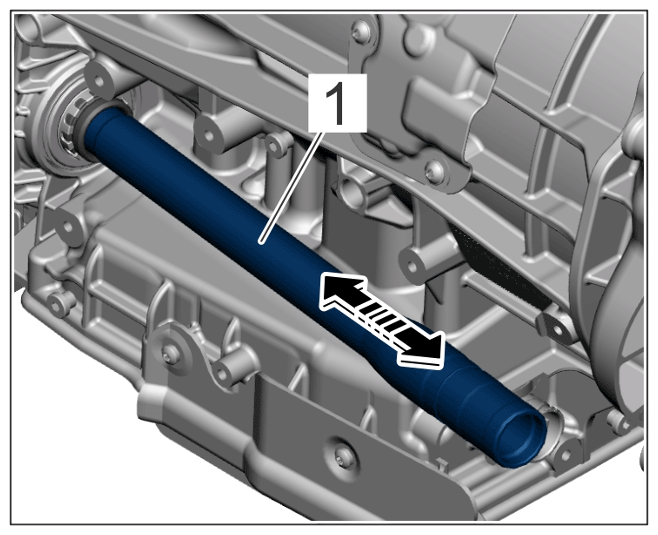

Replacing connecting shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting shaft

Install catalytic converter -2- .

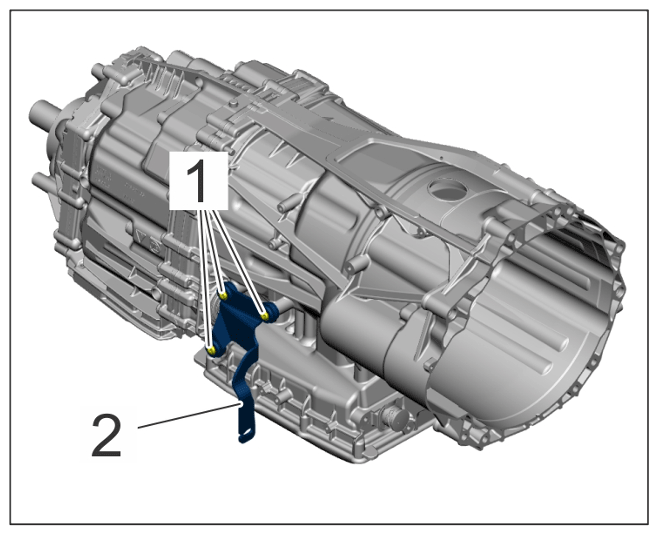

3.1 Tighten screws -1- to > Tightening torque 23 Nm (17 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter holder

If the double clutch transmission is mounted:

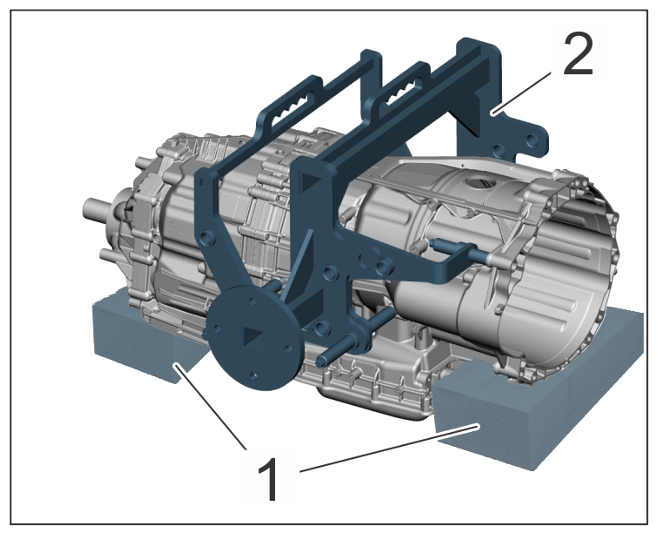

4.1 Install > 9932 - gear support .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission on wooden blocks

Install or mount double clutch transmission.
> WM, 373419 REMOVING AND INSTALLING DOUBLE-CLUTCH TRANSMISSION (V6)

> WM, 373427 REMOVING AND MOUNTING DOUBLE CLUTCH TRANSMISSION (V6)
Checking and topping up ATF
> WM, 370235 CHECKING AND TOPPING UP ATF
