Subsequent Work
WARNING: This page is about a different variant/trim than selected.

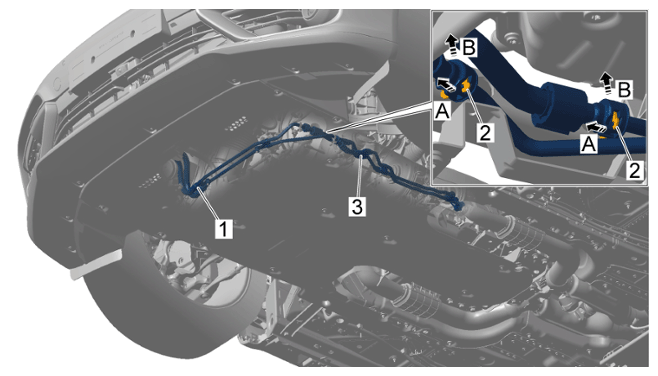

- Fit ATF cooling line (front section) on ATF cooling line (rear section).
- 1.1 Fit ATF cooling line (front section) -1-
from ATF cooling line (rear section) -3-
.
- 1.2 Fit clamps -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

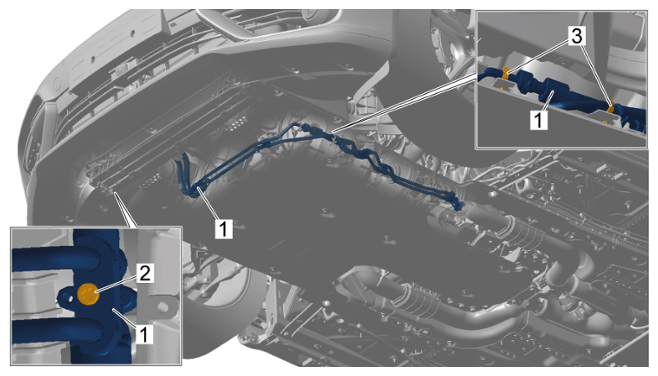

Securing ATF cooling line (front section)
- 1.3 Fit holder and clip in clips -3-
on ATF cooling line (front section) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Installing holder
- Fit front left wheel.
> WM, 440519 REMOVING AND FITTING WHEEL
- Fill up the ATF.
> WM, 370235 CHECKING AND TOPPING UP ATF
