Removing ATF Cooling Line (Rear Section)

WARNING: This page is about a different variant/trim than selected.

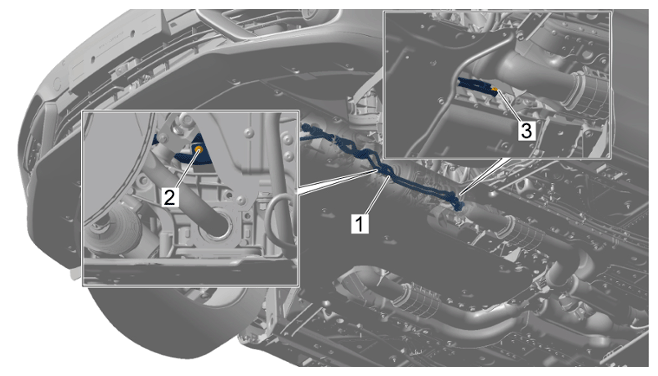

Remove ATF cooling line (rear section) -1- on the transmission and guide it out.

1.1 Unscrew screw -2- through the front left wheel housing.
1.2 Place a drip pan underneath to collect emerging oil.
1.3 Unscrew screw -3- using > VAS 6928 - Socket wrench set, 39-piece .
Information
- Close off connections and lines using suitable stoppers or caps.

1.4 Disconnect ATF cooling line (rear section) -1- from the transmission and guide it out by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing ATF cooling line (rear section)
