Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove front left wheel.

    > WM, 440519 REMOVING AND FITTING WHEEL

  2. Disconnect ATF cooling line (front section) on ATF cooling line (rear section).

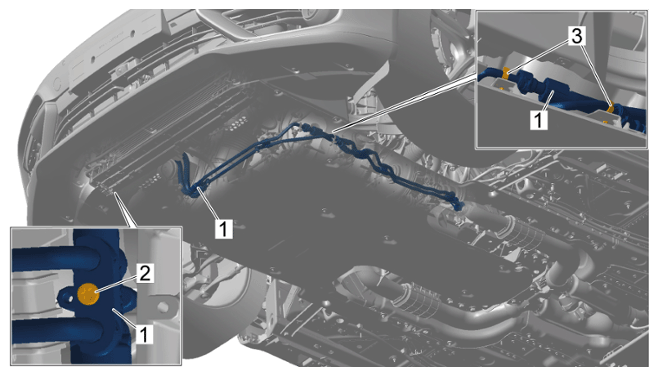

    1. 2.1 Unclip clips -3-  on ATF cooling line (front section) -1-  and remove holder.
      G15888114Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing holder

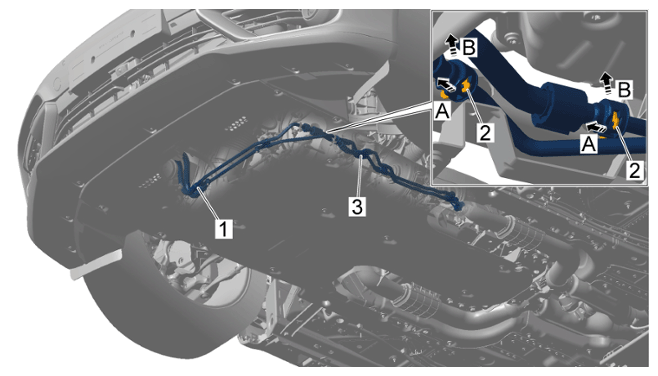

    2. 2.2 Release clamps -2-  (-arrows A-  ) and pull them off -arrows B-  .
    3. 2.3 Disconnect ATF cooling line (front section) -1-  from ATF cooling line (rear section) -3-  .
    4. 2.4 Move ATF cooling line (front section) -1-  aside.
      G15888115Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting ATF cooling line (front section)
