Removing ATF Cooler

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Place a drip pan underneath to collect emerging oil.

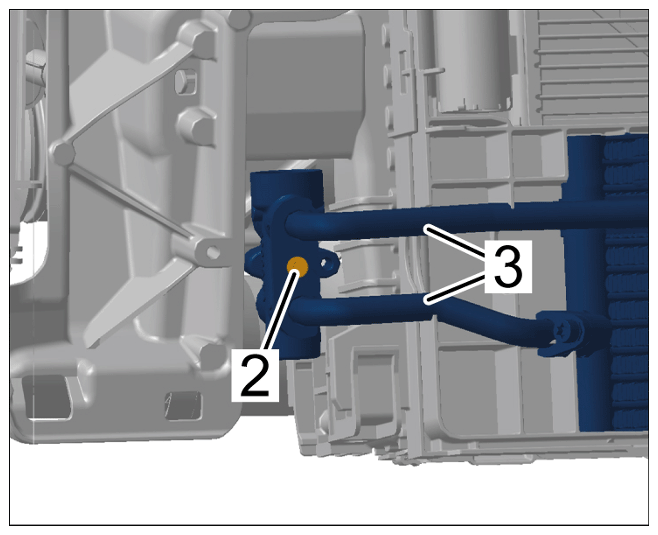

Unscrew screw -2- and disconnect ATF lines -3- at the thermostat.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw

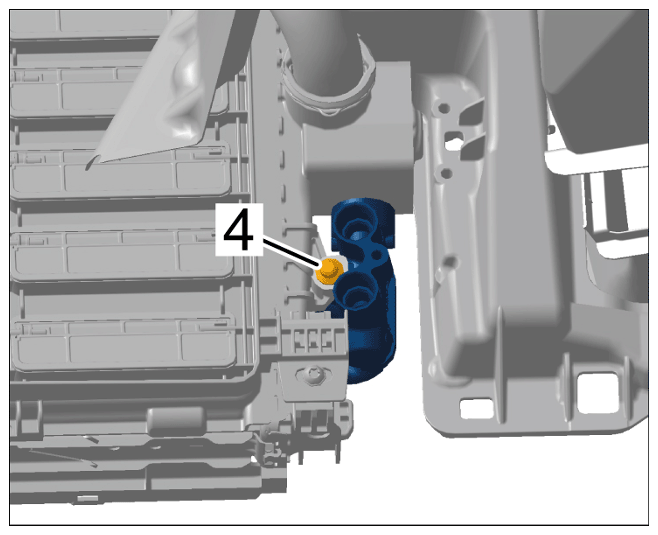

Unscrew screw -4- on radiator assembly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw on radiator assembly

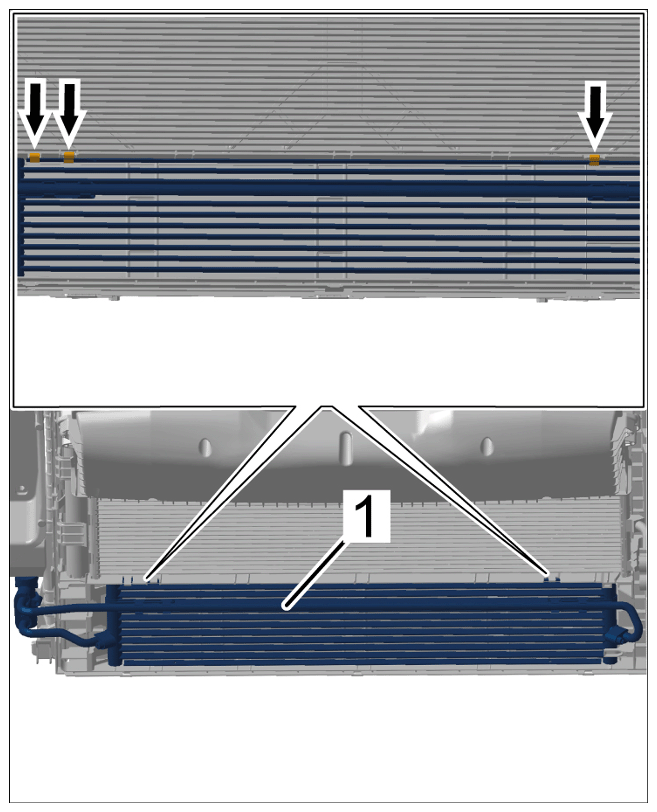

Unclip ATF cooler -1- (-arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping ATF cooler

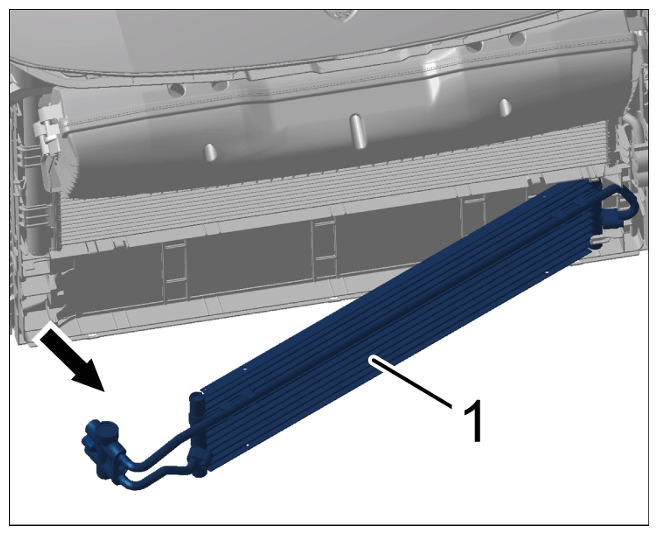

Swivel out ATF cooler -1- (-arrow- ) and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing ATF cooler
