Removing Pressure Sensor

Information

• The sealing ring on the pressure sensor is pressed on.
• After removing a pressure sensor, the sensor must be replaced.

Information

• The pressure sensors for clutch 1 and 2 (K1 and K2) are identical parts.
• The pressure sensors can be diagnosed using a fault code and this is used to detect the defective sensor in the PIWIS Tester.

  Installation overview of clutch pressure sensors:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

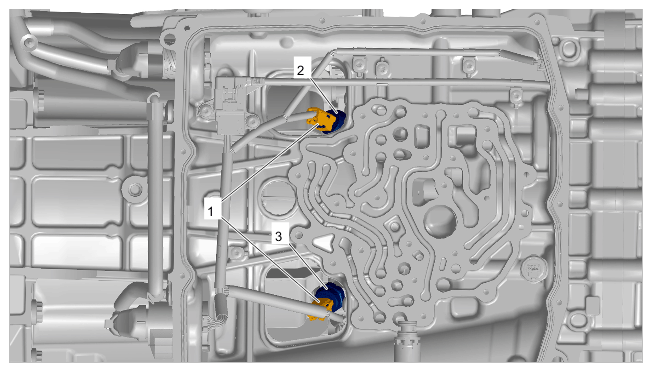

Installation overview of clutch pressure sensors

1. Release and pull off cable plug -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

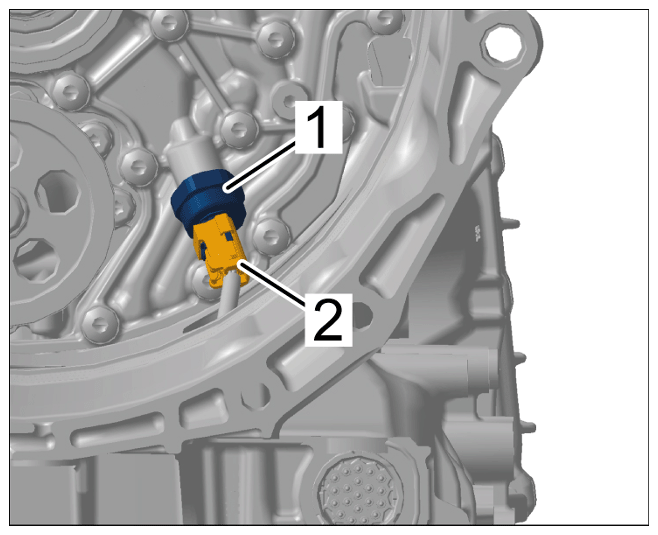

   Pressure sensor with cable plug (view from front without converter)

2. Remove pressure sensor using > 9911 - socket-wrench insert  .
   1. 2.1 Loosen pressure sensor -1-  by turning it approx. 90 degrees anti-clockwise using socket-wrench insert -2-  . Then remove tool.
   2. 2.2 Unscrew the pressure sensor by hand.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

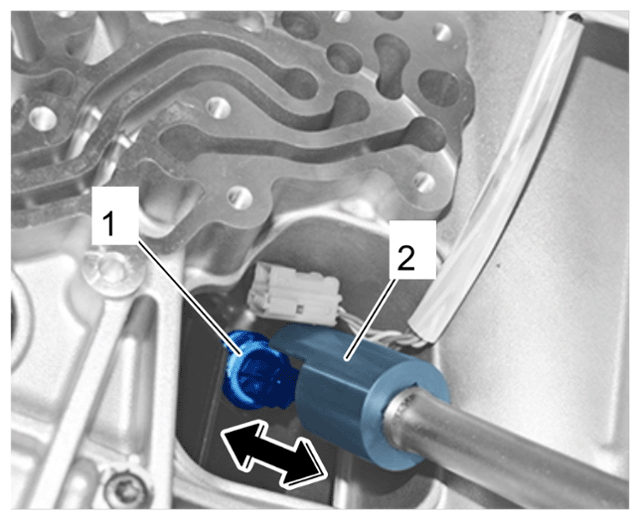

      Pressure sensor with special tool

      View of > 9911 - socket-wrench insert  fitted on the pressure sensor.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

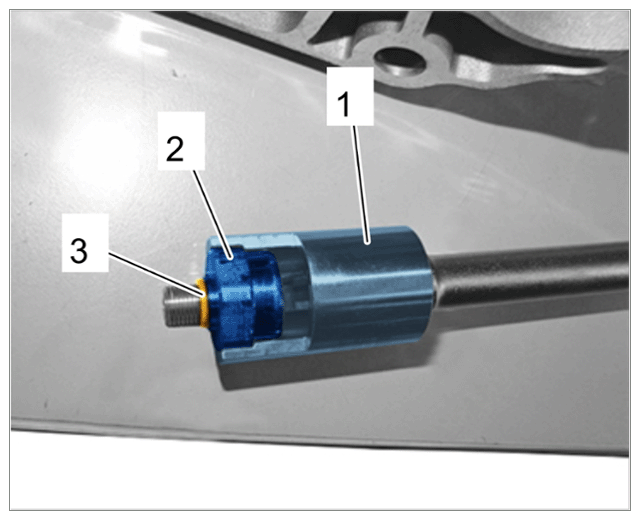

      Pressure sensor in special tool 9911
