Removing Wire Harness In Transmission

WARNING: This page is about a different variant/trim than selected.
  1. Pull sensor -1-  off retaining lug -2-  on transmission control mechanism.
    G15888097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sensor

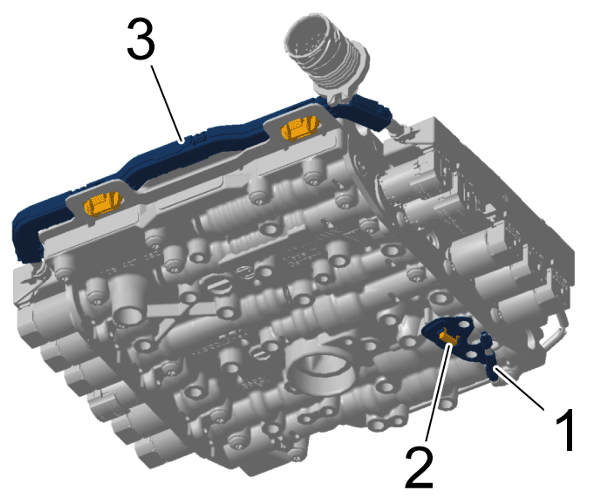

  2. Unclip cable duct -3-  from transmission control mechanism.
    G15888098Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct

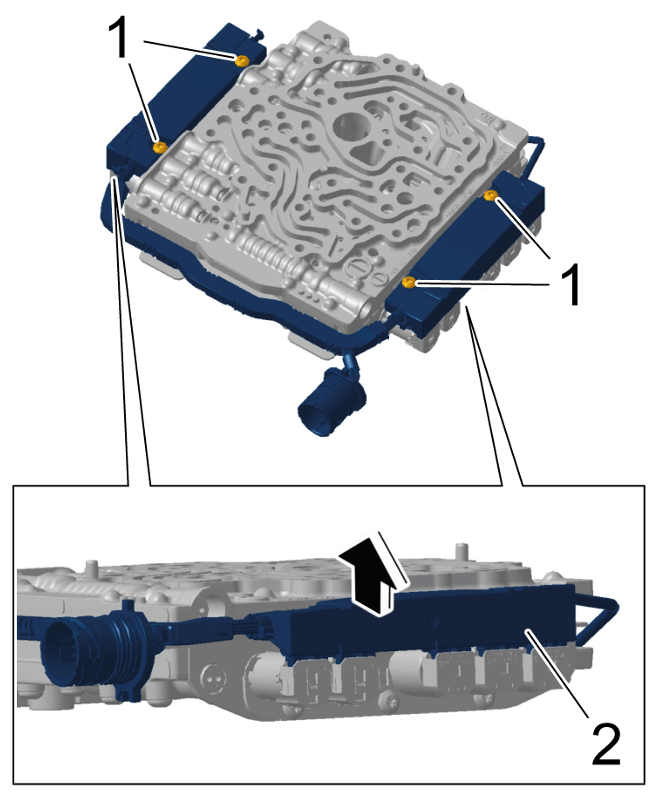

  3. Unscrew and remove screws -1-  .
    G15888099Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  4. Pull connector strips -2-  off solenoid valves -arrow-  .
    G15888100Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connector strips

  5. Remove wire harness in transmission from transmission control mechanism.
