Removing Intake-Air Distributor (V6 Turbo)

WARNING: This page is about a different variant/trim than selected.

V6 biturbo only:

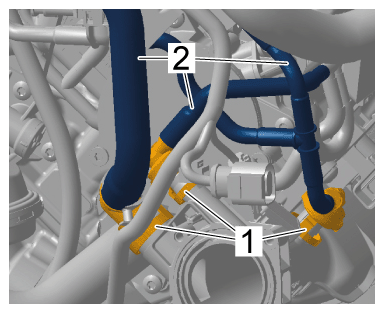

Press release buttons -1- on both sides of the vacuum hose connection pieces and pull off vacuum hoses -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum hoses (V6 biturbo)
V6 biturbo only:

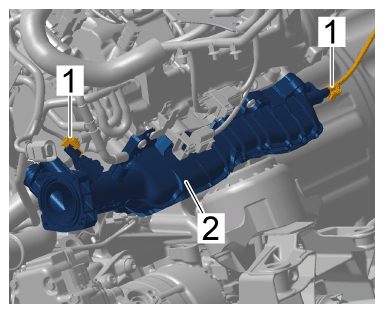

Release and disconnect electric plug connections -1- on intake-air distributor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections on intake-air distributor

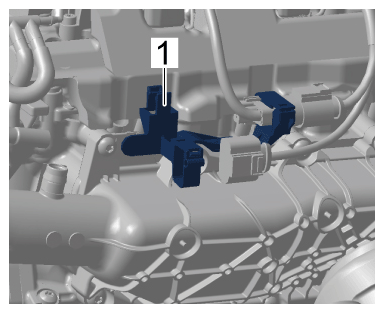

Unclip line bracket -1- from intake-air distributor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket on intake-air distributor
Remove intake-air distributor -1- .
1. 4.1 Unscrew screws -2 to 11- .
2. 4.2 Remove intake-air distributor -1- .
3. 4.3 Check seal and replace it if necessary.

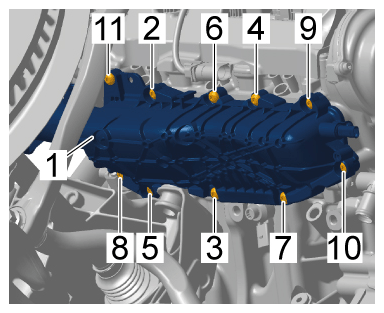

Fig 1: Intake-Air Distributor Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake-air distributor
