Removing Sealing Ring For CARDAN Flange
WARNING: This page is about a different variant/trim than selected.

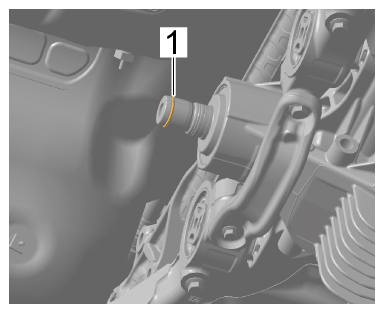

- Remove circlip -1-
on cardan flange.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing circlip on cardan flange

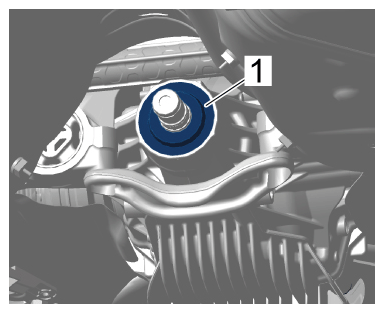

- Prise off dust boot -1-
using a suitable tool.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Prising off dust boot
- Tap cardan flange sealing ring in slightly at one side until the cardan flange sealing ring tilts.
- Remove sealing ring for cardan flange.
