Replacing Sealing Ring For All-Wheel Drive Flange Shaft At The Right

WARNING: This page is about a different variant/trim than selected.

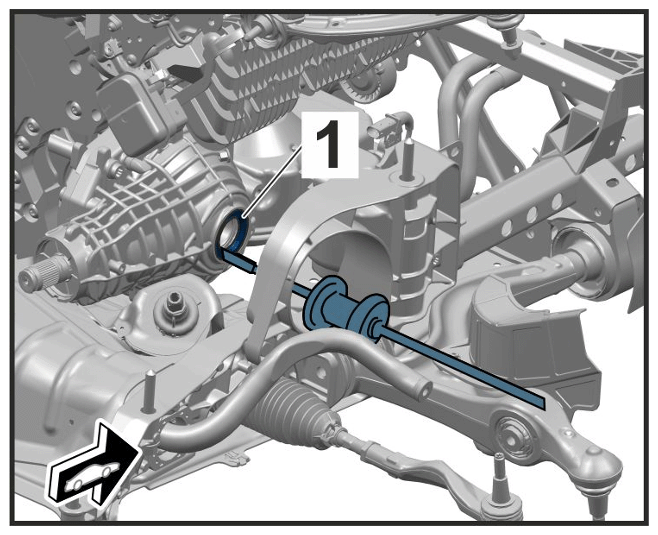

Remove sealing ring on the all-wheel final drive using > VAS 6965 - Puller set .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing right sealing ring

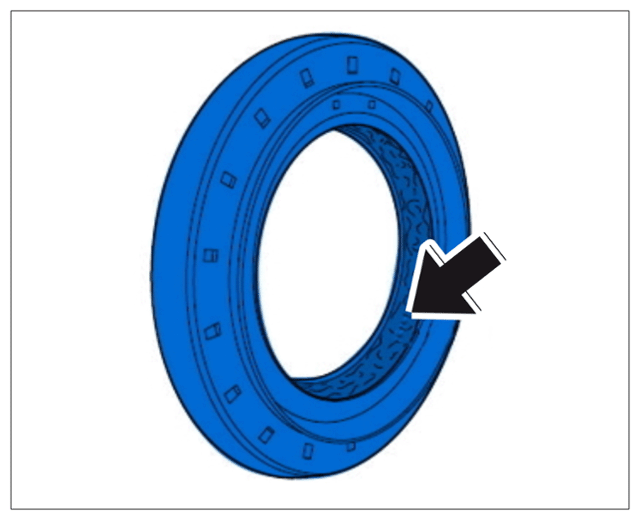

Fill the space between the dust lip and sealing lip on the new sealing ring with grease.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing sealing ring

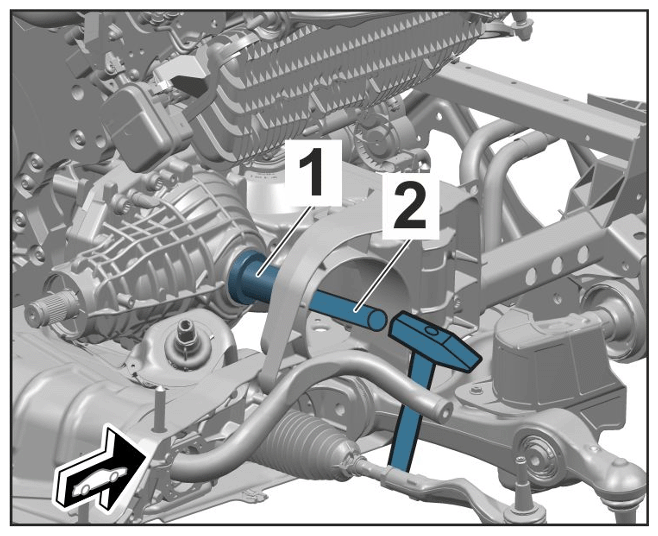

Tap in new sealing ring using > 9810 - pressure piece-1- and a brass mandrel -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tapping in right sealing ring
