Installing Rear CARDAN Shaft

WARNING: This page is about a different variant/trim than selected.

NOTE: Incorrect handling of cardan shaft

Risk of damage to the cardan shaft
Risk of damage to the centre bearing
Humming noises caused by defective centre bearing
→ When one of the two flanges on the cardan shaft has been released, relieve the tension on the centre bearing.

→ Follow the recommended procedures during installation, otherwise the position of the cardan shaft in its original place is no longer guaranteed.

→ Do not kink the cardan shaft (bend by max. 10°); only store and transport it in elongated position.

NOTE: Cardan shaft not fitted correctly

Cardan shaft loose
Damage to cardan shaft and transmission
→ Always replace circlips and O-rings.

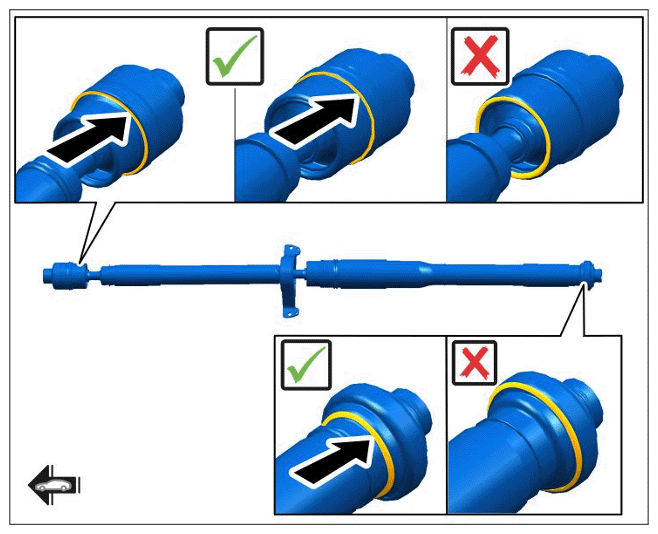

→ Press circlip on radially.

→ Tap on cardan shaft only at the designated positions using a plastic mandrel.

→ After fitting the cardan shaft, pull on it with your hand to check that it is fitted securely.

Information

The help of another person is required.

Secure the cardan shaft to the Porsche Doppelkupplung (PDK).
1. 1.1 Turn the cardan shaft to the applied markings and fit it onto the journal by jerking it.
2. 1.2 Tap on cardan shaft using a plastic mandrel and plastic hammer (max. 1.0 kg) at the designated positions -Arrows- .
  Information

  If the rear cardan shaft comes off when you pull it, replace the circlips again.
3. 1.3 Check that the cardan shaft is fitted securely by pulling on it with your hand.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cardan shaft
Fit cardan shaft on the rear axle differential.

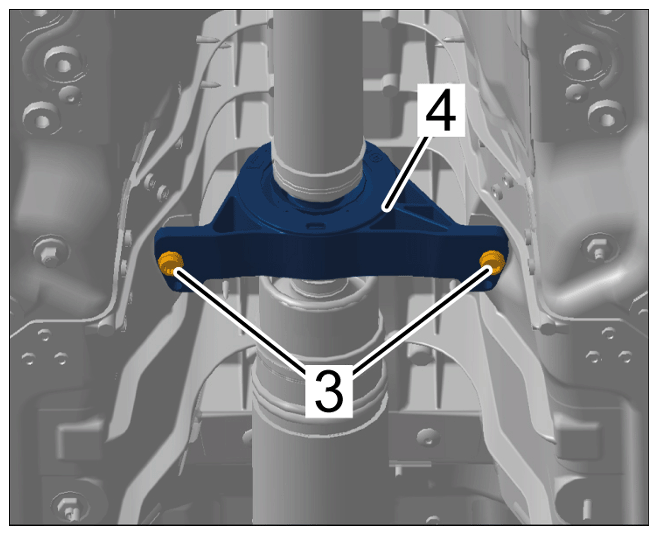

Screw in screws -3- on centre bearing holder -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on centre bearing holder
NOTE:
Cardan shaft not fitted correctly
- Cardan shaft loose
- Damage to cardan shaft and transmission
  → Always replace circlips and O-rings.

  → Press circlip on radially.

  → Tap on cardan shaft only at the designated positions using a plastic mandrel.

  → After fitting the cardan shaft, pull on it with your hand to check that it is fitted securely.
Information

The help of another person is required.

Secure the cardan shaft to the rear axle differential.

4.1 Turn the cardan shaft to the applied markings and fit it onto the journal by jerking it.
4.2 Tap on cardan shaft using a plastic mandrel and plastic hammer (max. 1.0 kg) at the designated positions -Arrows- .
Information

If the rear cardan shaft comes off when you pull it, replace the circlips again.

4.3 Check that the cardan shaft is fitted securely by pulling on it with your hand.

G15888522

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cardan shaft

Tighten screws -3- on centre bearing.
> Tightening torque 20 Nm (15 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on centre bearing holder
