Tightening Sequence For Oil Guide Housing
Tightening Sequence For Oil Guide Housing
WARNING:
This page is about a different variant/trim than selected.

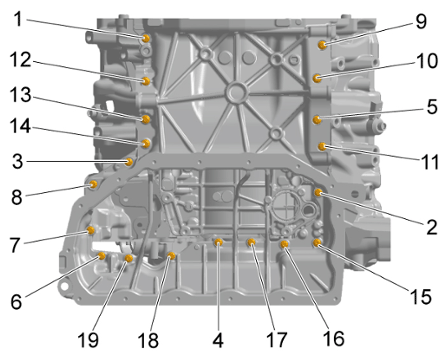

Fig 1: Oil Guide Housing Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tightening sequence for oil guide housing
1-19
Tightening sequence for oil guide housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
