Chain Box
WARNING: This page is about a different variant/trim than selected.

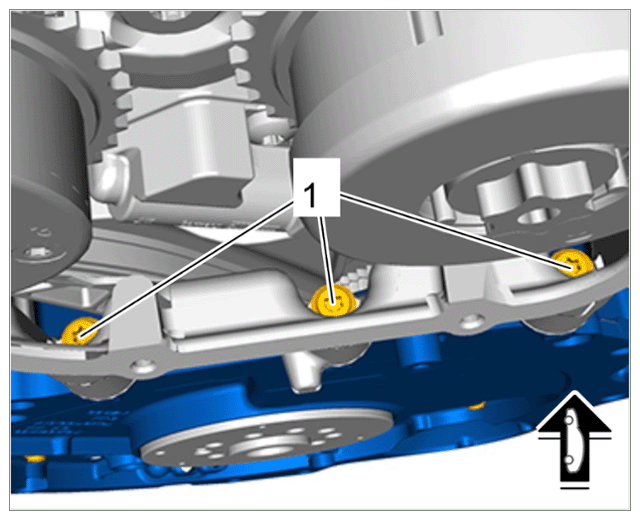

Fig 1: Upper Screws On Chain Housing Cover In Chain Box Components Location With Torque Specification
Upper screws on chain housing cover in chain box
| 1 | Screws/replace > Initial tightening 3 Nm (2 ftlb.) > Tightening torque 8 Nm (6 ftlb.) > Final tightening + 90° |
