Pistons And Connecting Rods
WARNING: This page is about a different variant/trim than selected.

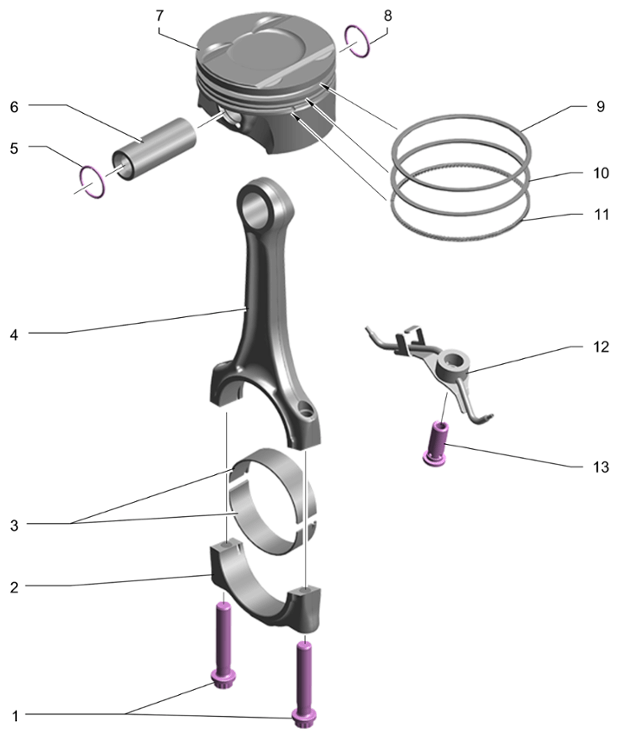

Pistons and connecting rods
| 1 | Connecting rod bolts/replace > Initial tightening 50 Nm (37 ftlb.) > Final tightening + 90° |
| 2 | Connecting-rod bearing cap |
| 3 | Bearing shells |
| 4 | Connecting rod |
| 5 | Circlip |
| 6 | Piston pin |
| 7 | Pistons |
| 8 | Circlip |
| 9 | Compression ring |
| 10 | Compression ring |
| 11 | Oil scraper ring |
| 12 | Oil spray jet |
| 13 | Banjo bolt for oil spray jet/replace > Initial tightening 10 Nm (7.5 ftlb.) > Final tightening + 45° |
