Section 15 (1X - Engine - General 3.0L Turbo -- 971 - PANAMERA (971))
>>
WM, 1X00IN Technical Values (V6 Turbo)
>>
Group 10 - Engine - Crankcase, Suspension
>>
Generator Bracket
Generator Bracket
WARNING:
This page is about a different variant/trim than selected.

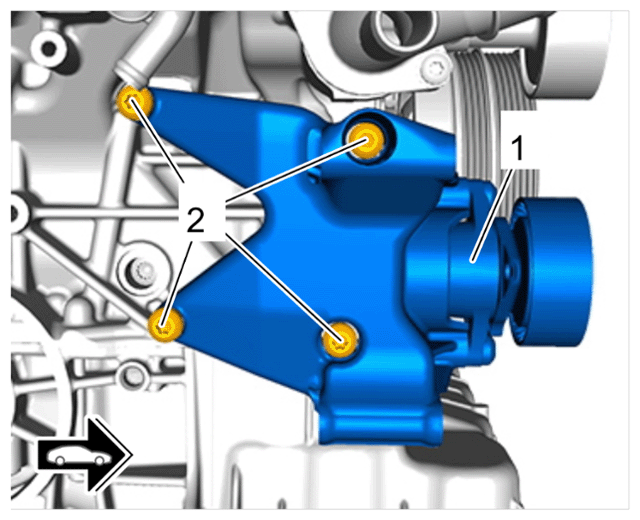

Fig 1: Generator Bracket Components Location With Torque Specification
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Generator bracket
1
Generator bracket
2
Screw/
replace
>
Initial tightening 8 Nm (6 ftlb.)
>
Final tightening + 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
