Removing Coolant Reservoir

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

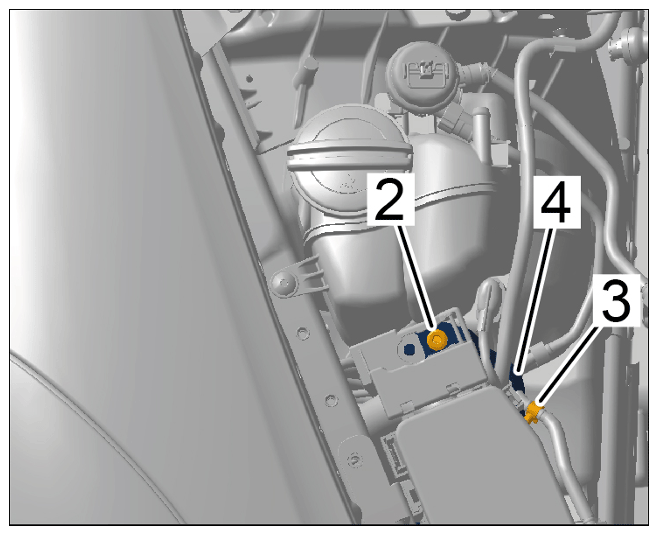

Unscrew nut -2- , unclip line bracket -3- and set positive cable -4- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting positive cable

Information

After disconnecting hoses, close off all openings immediately using commercially available rubber stoppers.

When fitting parts, do not remove stoppers until shortly before installation.

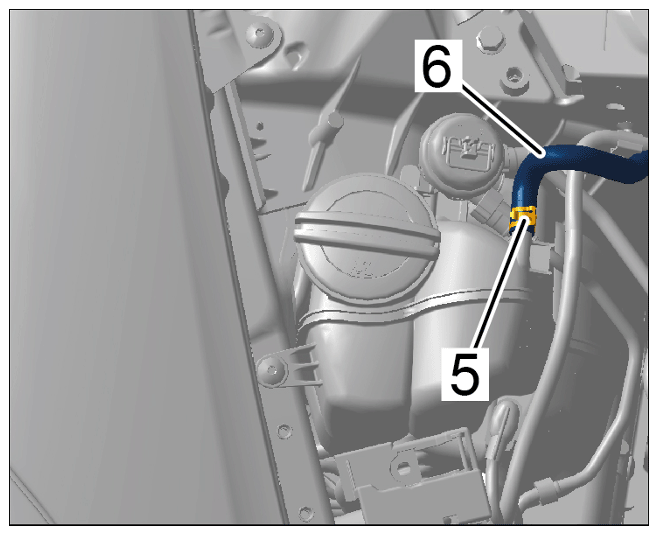

Open clamp -5- using > VAS 6889 - Spring Band Clamp Pliers and pull hose -6- off the coolant reservoir.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off hose

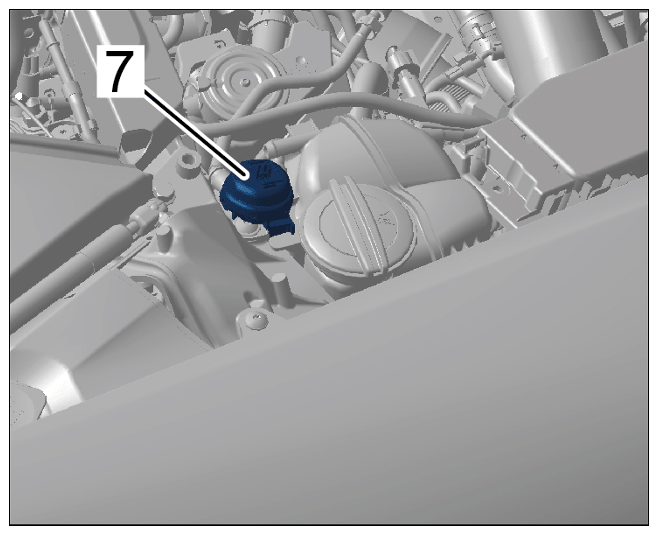

Disengage the valve -7- and set it aside with the lines connected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging valve

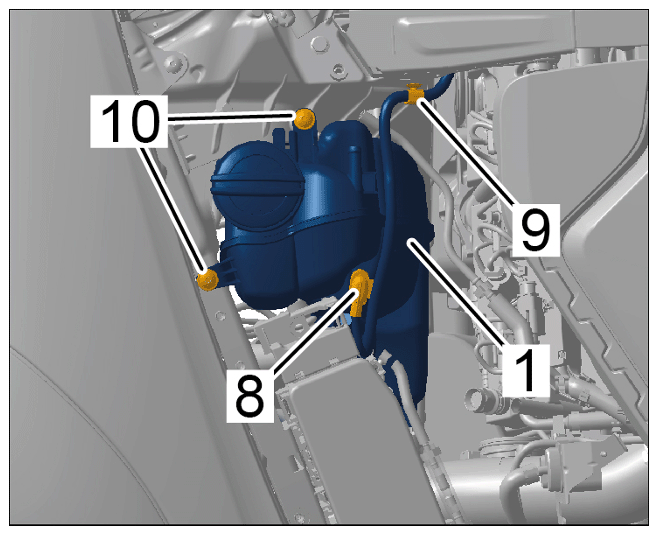

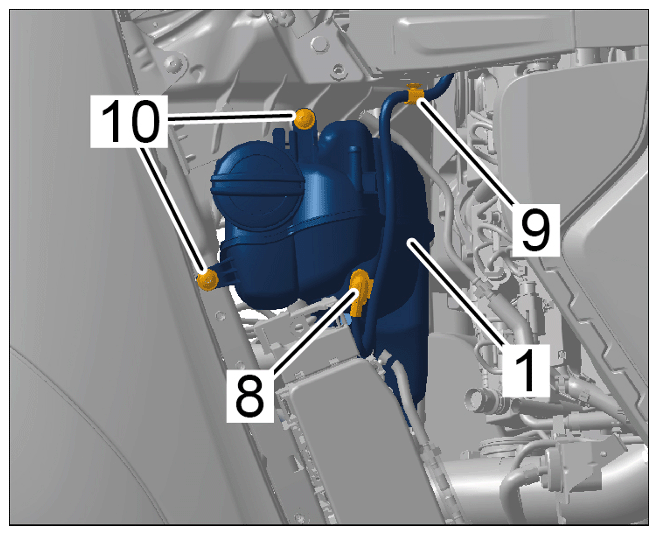

Loosen coolant reservoir -1- .
1. 4.1 Release and disconnect electric plug connection on the fill level sensor -8- .
2. 4.2 Unclip line bracket -9- and set electric line aside.
3. 4.3 Unscrew screws -10- and loosen coolant reservoir -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening coolant reservoir

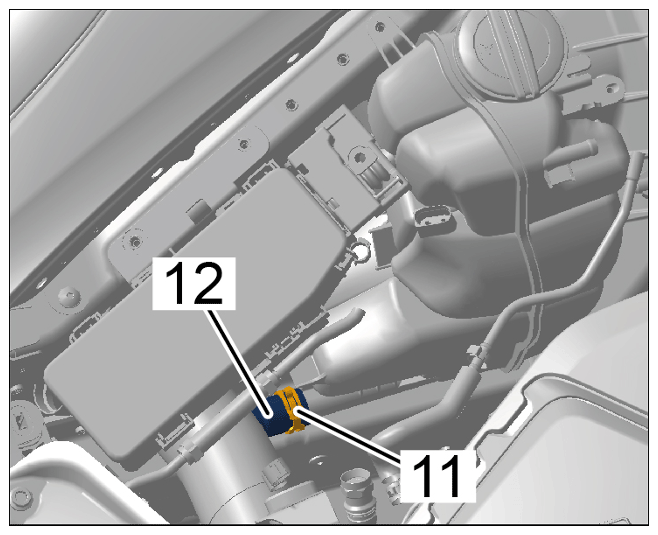

Open clamp -11- using > VAS 6889 - Spring Band Clamp Pliers and pull hose -12- off the coolant reservoir.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off hose at the bottom
Guide out the coolant reservoir.
