Removing Pulse Sender
WARNING: This page is about a different variant/trim than selected.

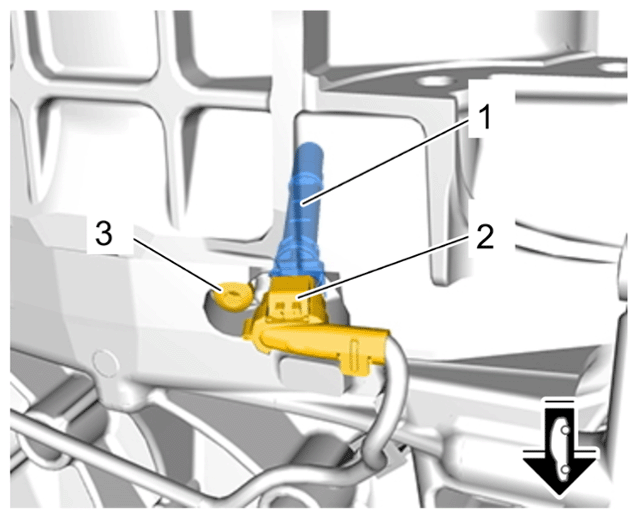

- Remove pulse sender -1-
.
- 1.1 Release and unplug electric plug connection -2-
.
- 1.2 Unscrew screw -3-
.
- 1.3 Carefully pull out the pulse sender -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulse sender
