Installing Pulse Sender
WARNING: This page is about a different variant/trim than selected.

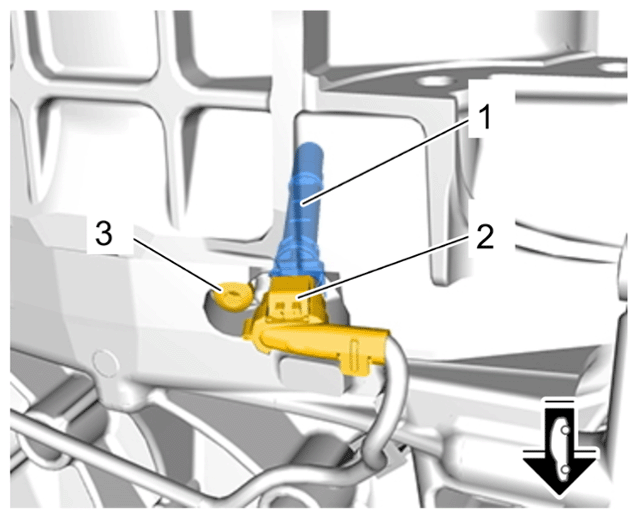

- Install pulse sender -1-
.
- 1.1 Insert pulse sender -1-
.
- 1.2 Fit and tighten screw -3-
.
V6 with aluminum screw: > Tightening torque 8 Nm (5.9 ftlb.)
V8 with steel screw: >
- 1.3 Connect and lock electric plug connection -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulse sender
