Removing Spark Plugs

WARNING: This page is about a different variant/trim than selected.
NOTE: Broken spark plug electrodes
  • Bits of electrodes can fall into the combustion chamber
  1. Unscrew spark plugs using > VAS 6925 - 3/8" extension-2-  and > VAS 6919 - spark plug socket adapter, a/f 14-1-  .

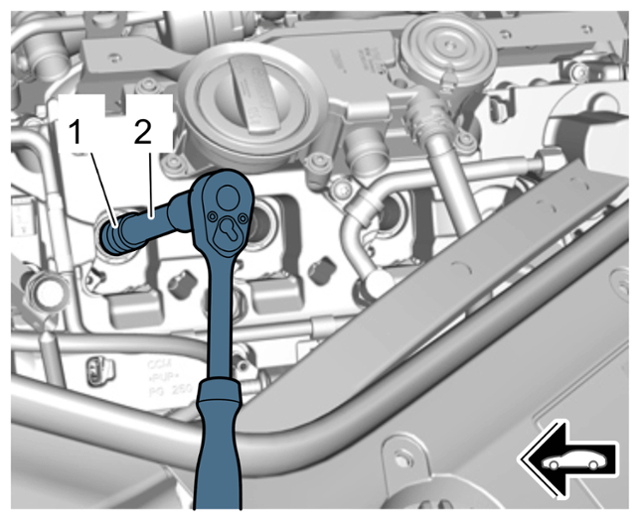

G15877135Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing spark plug (V8 biturbo engine)
