Installing Hall-Sender Rotor
WARNING: This page is about a different variant/trim than selected.

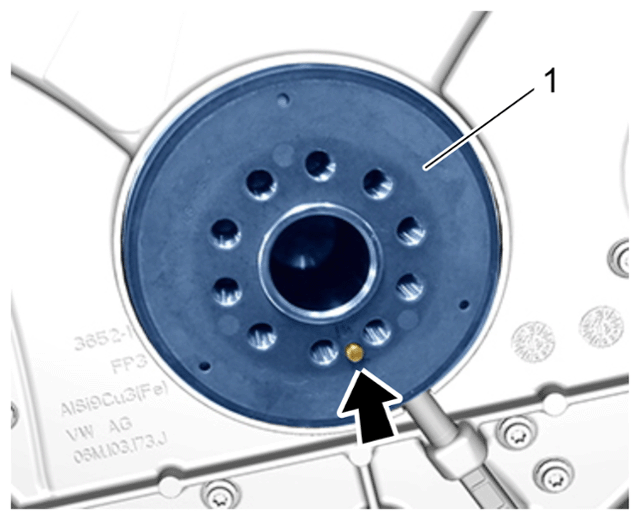

- Fit rotor -1-
on the crankshaft flange and check the position of the centering pin -arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Hall-sender rotor
