Checking Rotor For Hall Sender
WARNING: This page is about a different variant/trim than selected.
Information
- Always check hall-sender rotor before installation.
- The hall-sender rotor must not come into contact with a magnet.
- If the hall-sender rotor comes close to a magnet, it must be replaced.
- Check condition of rotor using tool > T10473 - Test card
.
- 1.1 > T10473 - Test card-2-
must be held and turned over the rotor -1-
.

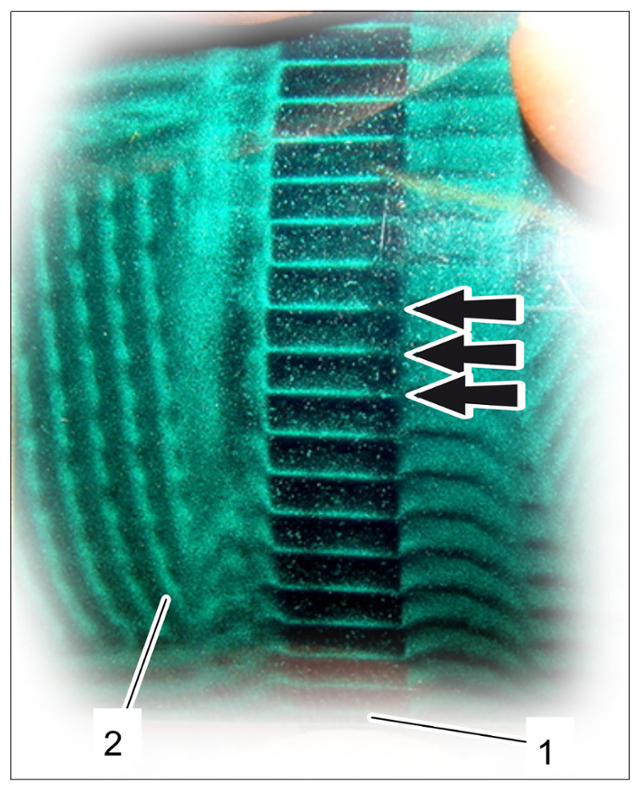

- 1.2 An undamaged rotor -1-
will be indicated by continuous stripes -arrows-
.
Result: Rotor OK!
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Undamaged hall-sender rotor

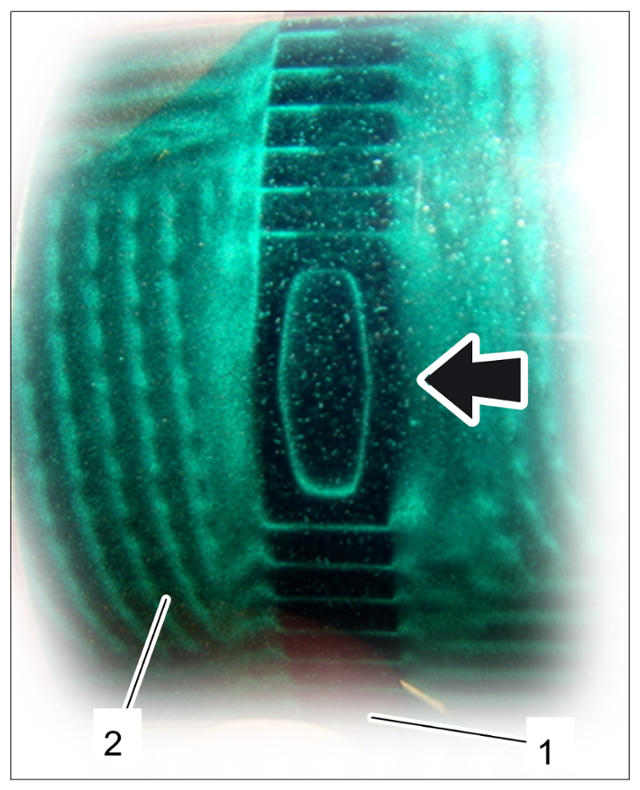

- Second test step: TDC marking
- 2.1 "TDC marking" -arrow-
on undamaged rotor.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Undamaged "TDC marking"
- Always replace a damaged rotor.

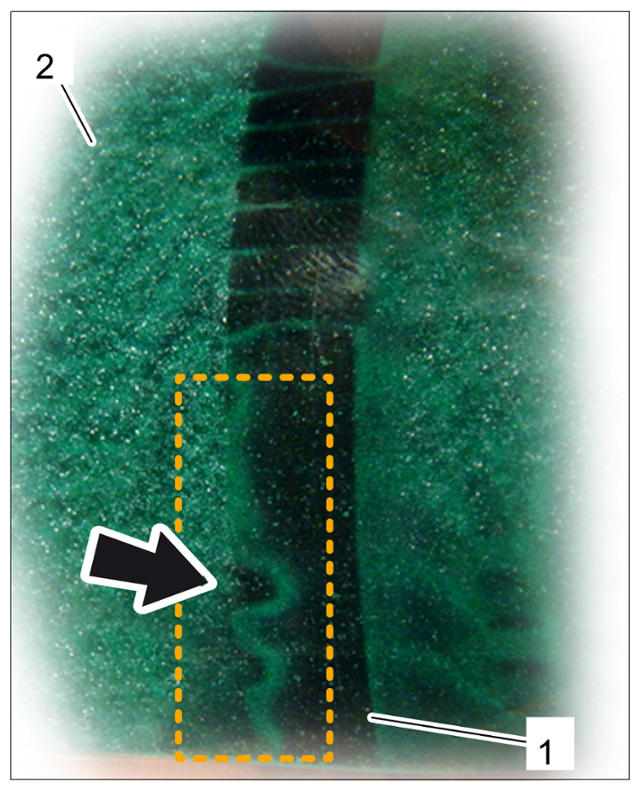

- 3.1 No stripes -arrow-
will be visible if the rotor is damaged.
Result: Rotor not OK - replace it!
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Damaged hall-sender rotor
- Only install an undamaged rotor.
