Remove Camshaft Sensor (Intake Camshaft)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

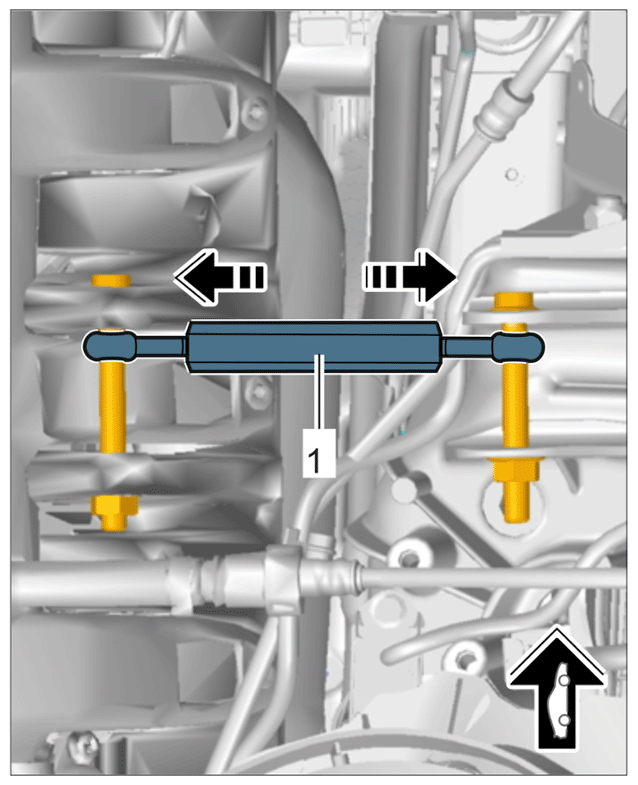

Special tool 9866 Support

• For better access in the engine compartment, use  > 9866 - support  .
• Fit support -1- instead of torque support.
• The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows-  .

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

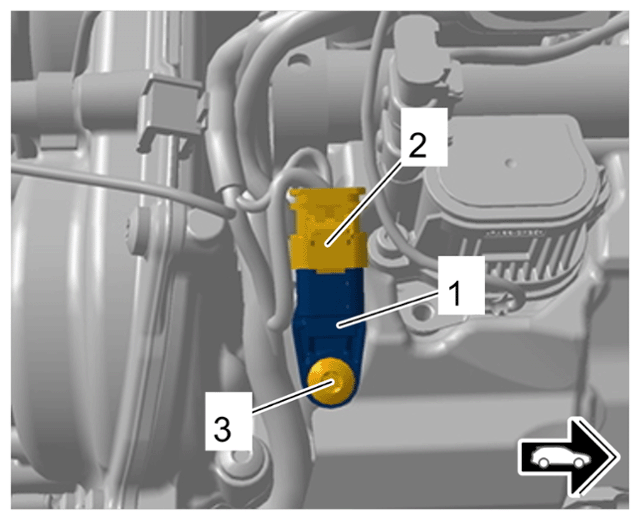

1. Remove camshaft sensor -1-  .
   1. 1.1 Release and disconnect electric plug connection -2-  .
   2. 1.2 Unscrew screw -3-  .
   3. 1.3 Remove camshaft sensor -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshaft sensor for intake camshafts
