Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Dome strut to body | Hexagon-head bolt, M10 x 80 with hexagon nut/always replace bolt and nut following removal | Initial tightening | 50 Nm (37 ftlb.) | ||
| Dome strut to body | Hexagon-head bolt, M10 x 80 with hexagon nut/always replace bolt and nut following removal | Final tightening | + 90° | ||
| Bracket securing torque support upper part to lower part | Tightening torque | 55 Nm (40.6 ftlb.) | |||
| Fastening screw for torque support bracket | M8 x 55/(V6 Turbo M8 x 45) | Tightening torque | 23 Nm (17 ftlb.) | ||
| Double screw for ignition coil | M6 x 45 - M6 x 12 | Tightening torque | 9 Nm (6.6 ftlb.) | ||

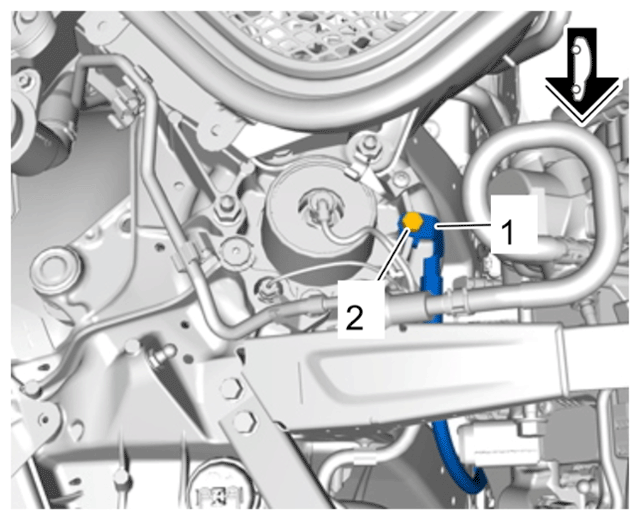

| Fastening screw securing engine ground strap to spring strut dome | Item 2 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Ground point on right spring strut dome |
|||||
| Differential pressure lines to torque support bracket | M6 x 12 | Tightening torque | 8 Nm (6 ftlb.) | ||
