Removing Ignition Coils For Cylinders 1 To 3

WARNING: This page is about a different variant/trim than selected.
  1. Remove ignition coil for cylinder 1.
    1. 1.1 Release and disconnect cable plug -4-  for ignition coil -1-  .
    2. 1.2 Loosen and unscrew screw -5-  on the ignition coil -1-  .
    3. 1.3 Pull off ignition coil -1-  .
  2. Remove ignition coil for cylinders 2 and 3.
    1. 2.1 Expose cable duct -3-  .
      1. 2.1.1 Loosen oxygen sensor lines -2-  from cable duct -3-  .
      2. 2.1.2 Pull cable duct -3-  off ball pins -arrows-  .
    2. 2.2 Remove ignition coil -1-  .
      1. 2.2.1 Release and disconnect cable plug -4-  for ignition coil -1-  .
      2. 2.2.2 Loosen and unscrew screw -5-  on the ignition coil -1-  .
      3. 2.2.3 Pull off ignition coil -1-  .

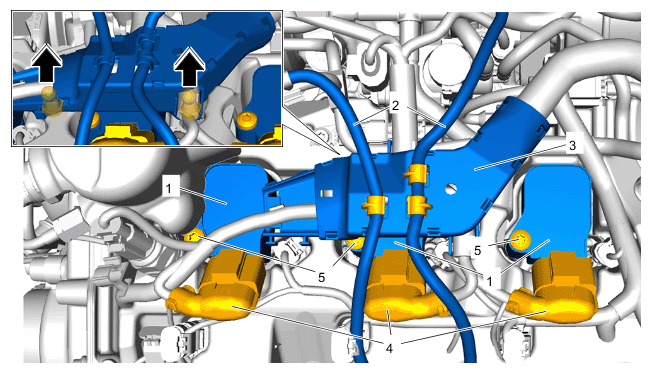

      G15877109Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Overview of cylinder bank 1
