Installing Ignition Coils For Cylinders 4 To 6

1. 1.1 Insert ignition coil -2-  and check that it is fitted correctly.
2. 1.2 Connect and lock cable plug -4-  on ignition coil -2-  .
3. 1.3 Fit and tighten screw -5-  on ignition coil -2-  .

   > Tightening torque 9 Nm (6.6 ftlb.)

1. 2.1 Press cable duct -1-  onto ball pin -left arrow-  and engage the guide in the bar until it locks with an audible click.
   1. 2.1.1 Check that cable duct -1-  is fitted securely.
2. 2.2 Fit oxygen sensor lines -3-  on cable duct -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

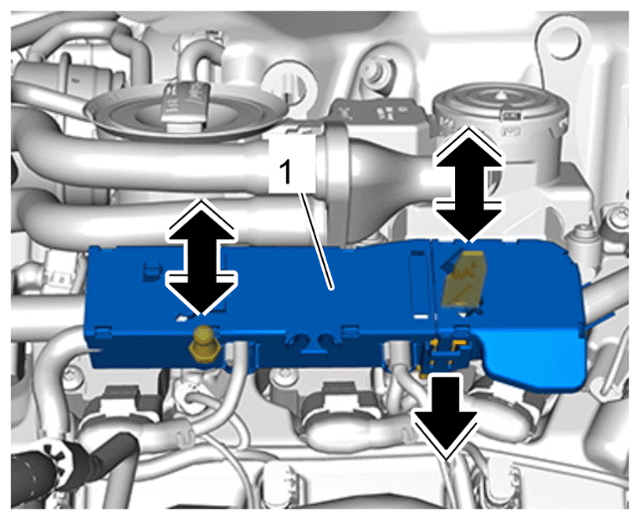

   Cable duct

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

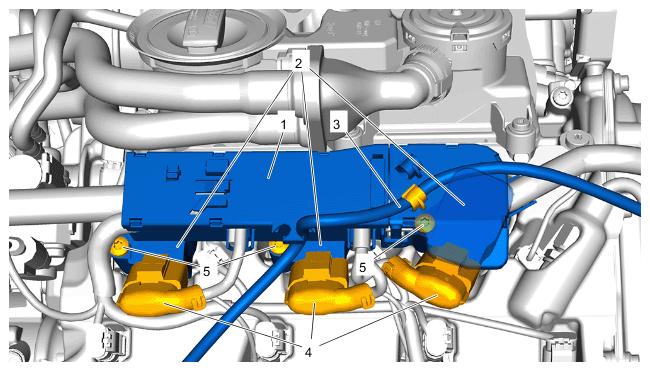

   Overview of cylinder bank 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

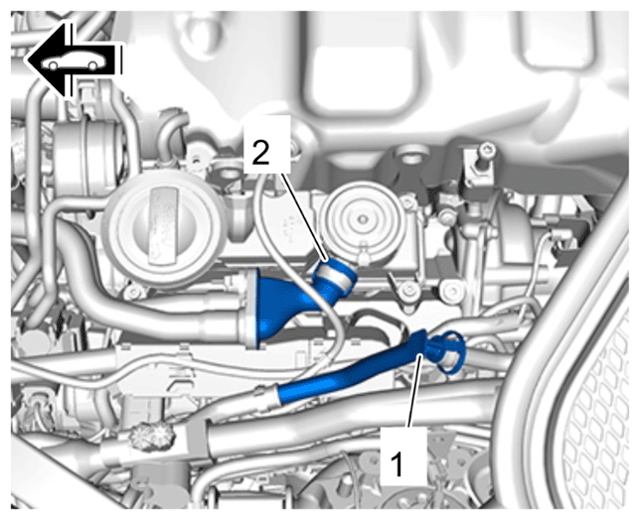

Vent line and vacuum line
