Installing Ignition Coils For Cylinders 1 To 3

1. 1.1 Insert ignition coil and check that it is fitted correctly.
2. 1.2 Connect and lock cable plug -4-  on ignition coil -1-  .
3. 1.3 Fit and tighten screw -5-  on ignition coil -1-  .

   > Tightening torque 9 Nm (6.6 ftlb.)

1. 2.1 Press cable duct -3-  onto ball pins -opposite direction to arrow-  and check that it is fitted securely.
2. 2.2 Fit oxygen sensor lines -2-  on cable duct -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

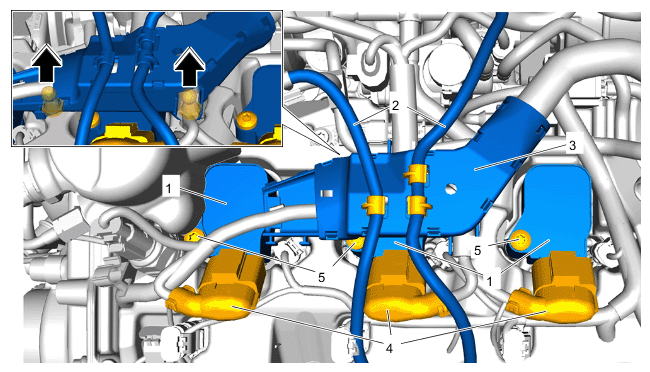

Overview of cylinder bank 1
