Removing Ignition Starter Switch

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew and remove screws -2-  .
  2. Remove ignition starter switch -1-  .

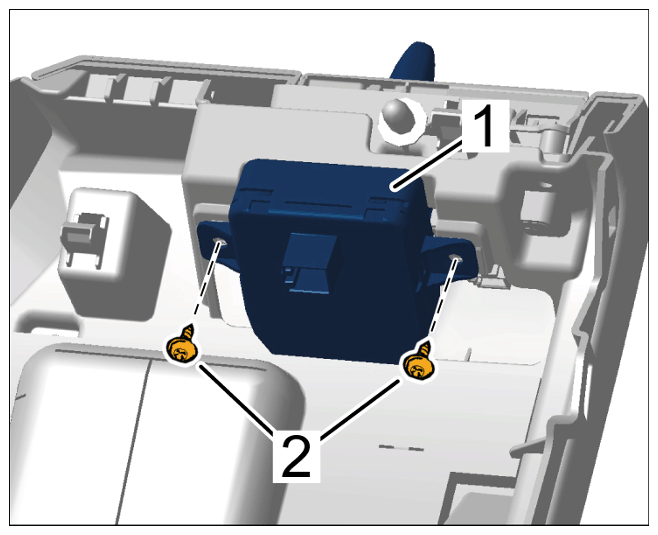

    G15877102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws
