Installing Air Pipe (Suction Hose)
WARNING: This page is about a different variant/trim than selected.

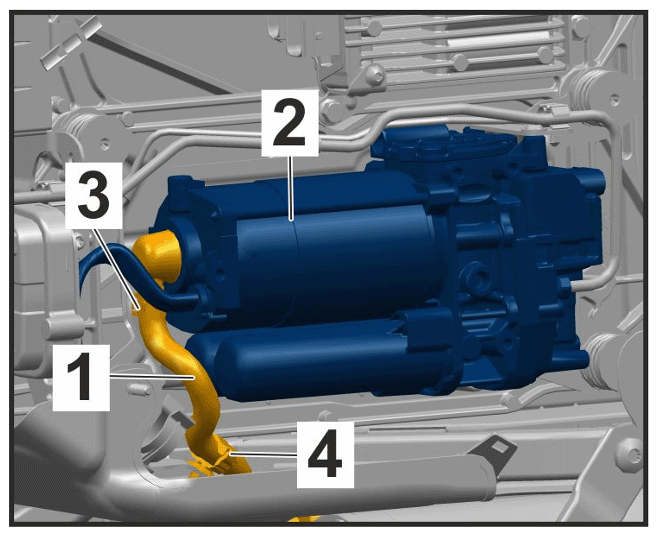

- Fit suction line -1-
on the compressor -2-
.
Mounting for suction line on compressor
- 1.1 Connect suction line -1- to connection piece and secure with a spring band clamp -3- .
- 1.2 Secure bracket -4- .

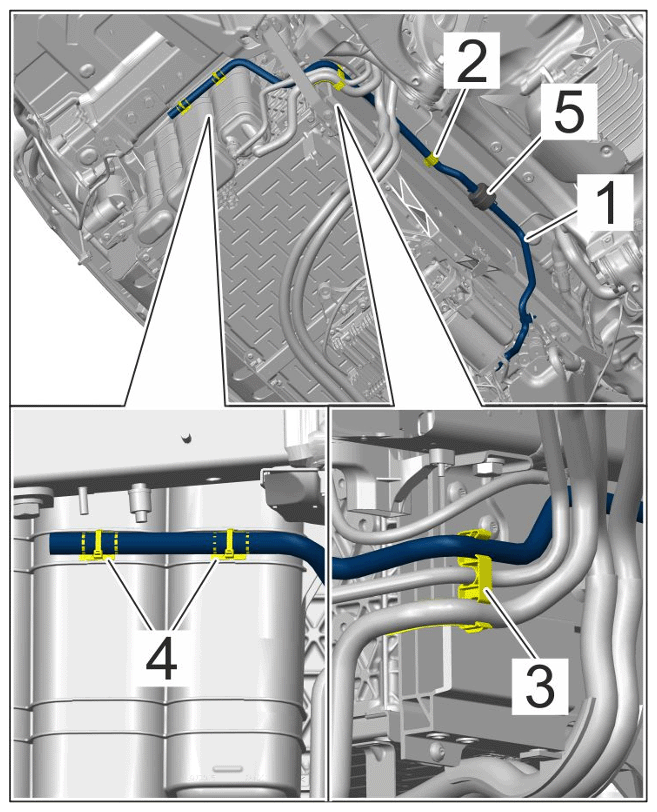

- Fit suction hose -1-
.
Suction hose mounting (new line routing)
- 2.1 If necessary, attach new adhesive base for bracket -4-
on the carbon canister as shown. Bonding surfaces must be clean and free of dust and grease.
Information
Brackets must be within the colored markings applied on the suction hose!
- 2.2 Secure suction hose in brackets -2 to 4- (bracket -3- is designed as a triple holder for the new line routing).
- 2.3 Fit air cleaner -5- on bodyshell bolt (clip must engage with an audible click).
- 2.1 If necessary, attach new adhesive base for bracket -4-
on the carbon canister as shown. Bonding surfaces must be clean and free of dust and grease.
