Removing Front Seat Belt Buckle

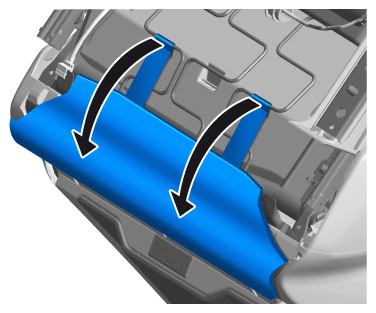

1. Detach seat backrest cover at the bottom of the front seat -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Restraining straps

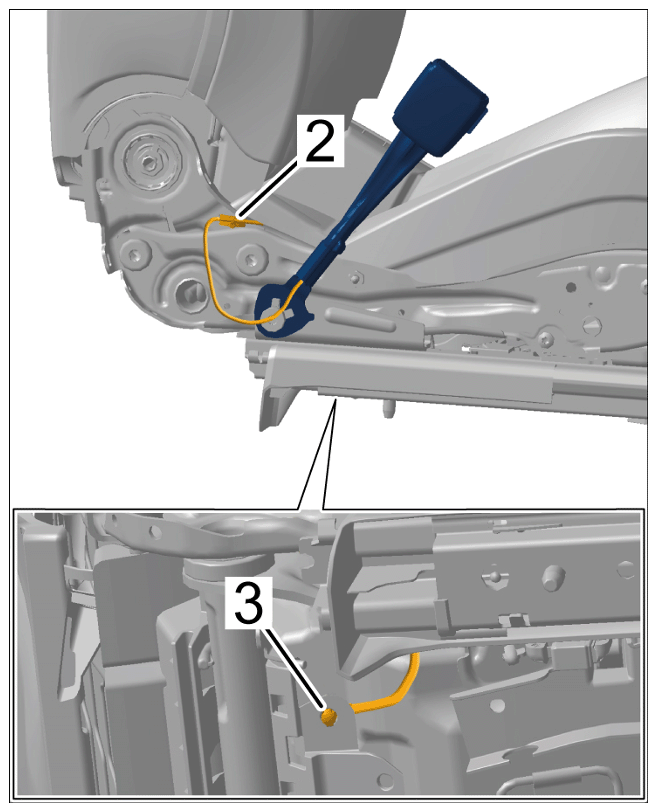

2. Unclip cable holder at the side -2-  and at the bottom -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable holder

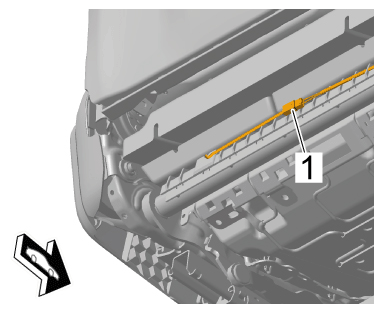

3. Release and disconnect electrical plug connection -1-  and feed out electrical cable.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electrical plug connection

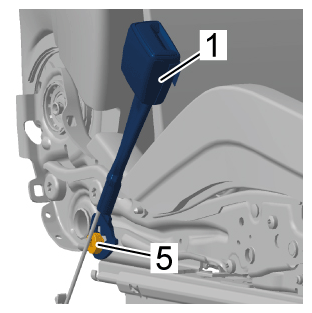

4. Remove screw -5-  and remove front belt buckle -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front belt buckle
