Installing Trim Panel Under Dashboard

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order.
  2. Screw in and tighten screw -3-  between steering column and decorative element at the top > Tightening torque 1.5 Nm (1 ftlb.)
    G15874296Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screwing in and tightening screw between steering column and decorative element at the top

  3. Screw in and tighten side screw -2-  on trim panel under dashboard > Tightening torque 1.5 Nm (1 ftlb.)

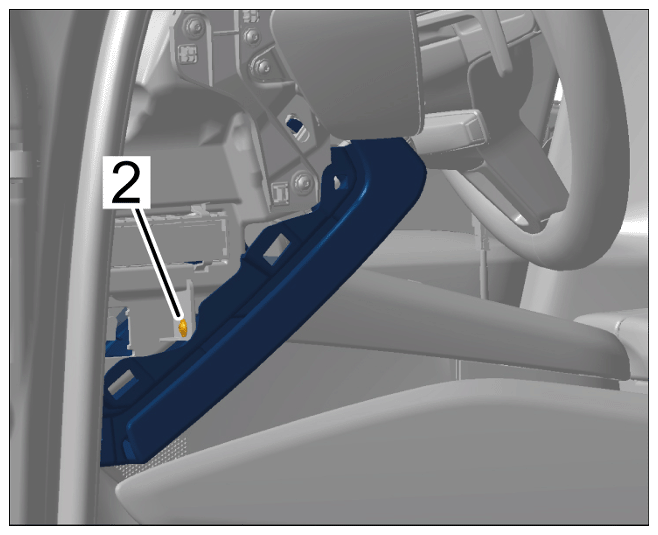

    G15874297Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screwing in and tightening screw at the side

  4. Screw in and tighten screws -1 and 2-  at the bottom of trim panel under dashboard.

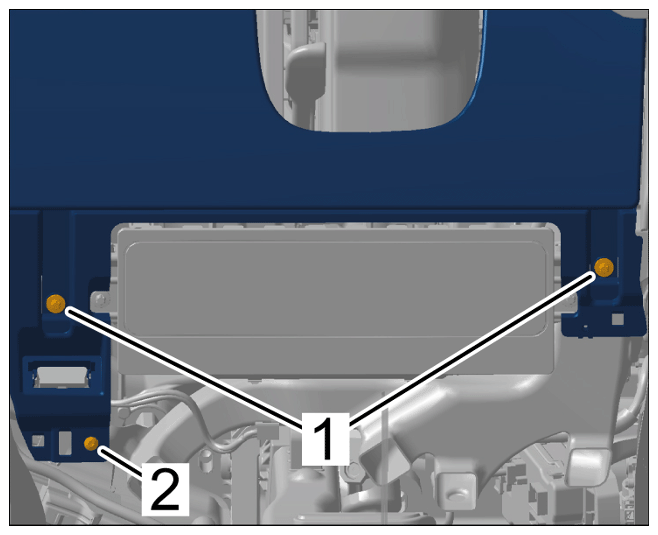

    G15874298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screwing in and tightening screws at the bottom

    1. 4.1 Screw in and tighten screws -1-  at the bottom of trim panel under dashboard > Tightening torque 13 Nm (9.5 ftlb.)
    2. 4.2 Screw in and tighten screw -2-  at the bottom of trim panel under dashboard > Tightening torque 1.5 Nm (1 ftlb.)
