Removing Dashboard

WARNING: This page is about a different variant/trim than selected.
WARNING: Improper handling of airbag units
  • Triggering of airbag unit.
  • System faults can occur.

    → Switch off ignition and move remote control (hand-held transmitter) at least 2 metres away from the vehicle.

    → A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

    → Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

    → Wait 1 minute after disconnecting the battery.

    → Only pull off connector on the triggering unit after the waiting time has elapsed.

    → Make sure that no foreign objects are located in front of the airbag unit during installation.

    → Replace damaged parts during removal.

    → Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

    → Do not place any objects on the airbag units.

    → If removed for an extended period, the airbag units must be stored in a safe place.

    → Airbag units must not come into contact with grease, oil, detergents, liquids or similar substances.

    → Do not expose airbag units to temperatures above 90°.

    → Do not remove the short-circuit spring on the plug contacts.

    → Triggering and preparations may only be carried out by skilled staff, supervised by a second responsible person.

    → Before disposal, the airbag unit must be rendered harmless by triggering it electrically while observing all precautionary measures, thereby preventing it from being used incorrectly.

WARNING: Incorrect handling of safety bolts
  • Danger of injury
  • Loss of torque

    → Always use new screws or nuts following removal.

    → Comply with instructions for repairs.

    → Observe specified tightening torques.

    → Carry out a visual inspection of parts used.

  1. Only for vehicles with stopwatch:

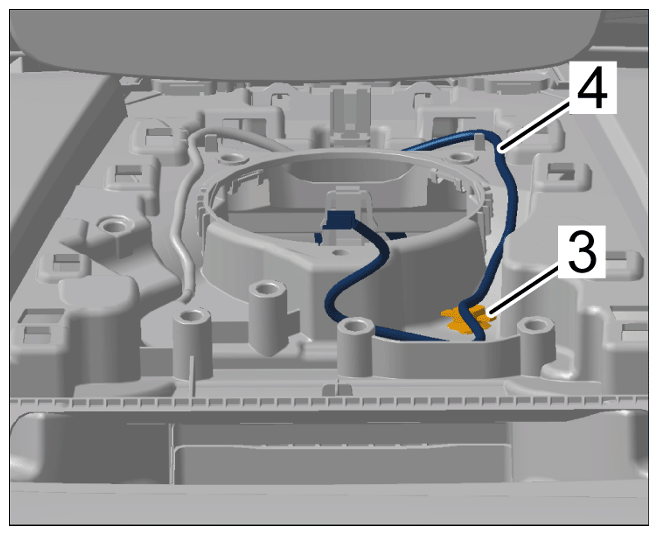

    Unclip line bracket -3-  for electric line for stopwatch -4-  under the centre loudspeaker cover.

    G15874281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket

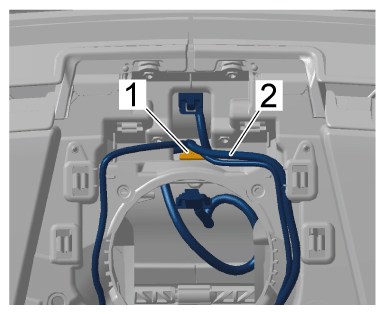

  2. Unclip line bracket -1-  securing electric line for sun sensor -2-  .
    G15874282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line

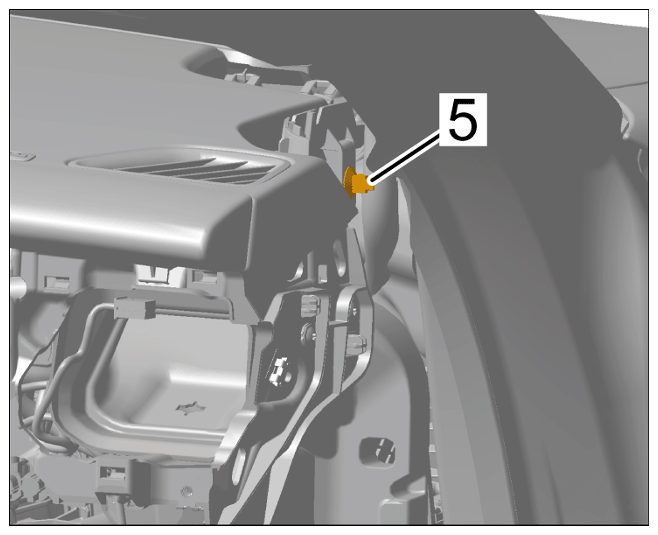

  3. Unclip line bracket -5-  from electric wire harness on the passenger's side.
    G15874283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket on passenger's side

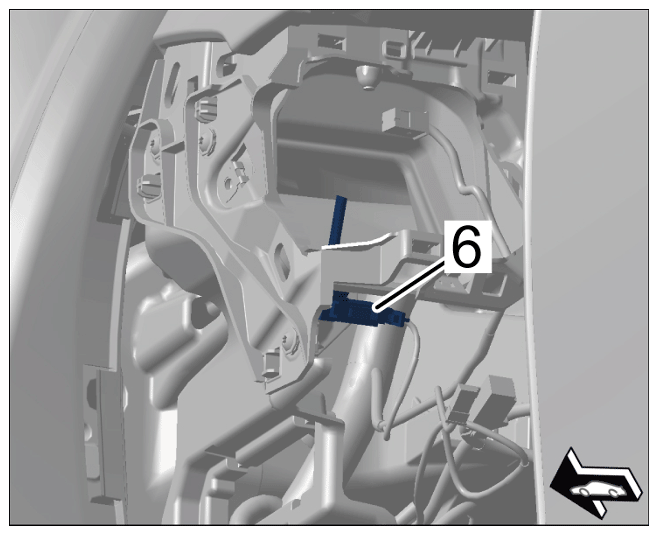

  4. Turn air quality sensors/temperature sensors -6-  at the left and right with lines connected by 90° and remove them from the air ducts on the outer air vents.
    G15874284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sensors

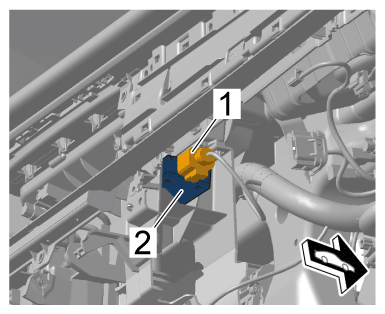

  5. Release and disconnect electric plug connection -1-  on air ioniser -2-  .
    G15874285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air ioniser

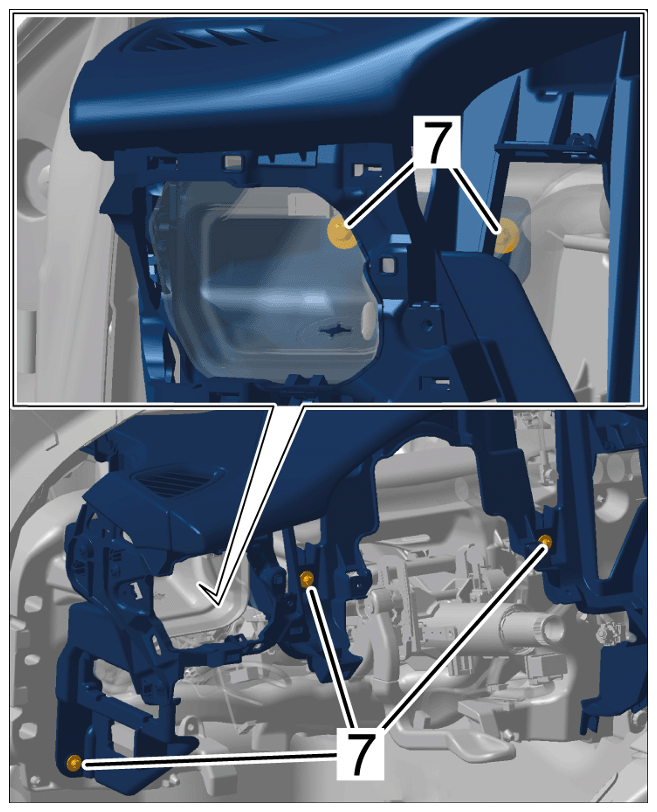

  6. Unscrew screws -7-  on the driver's side.
    G15874286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on driver's side

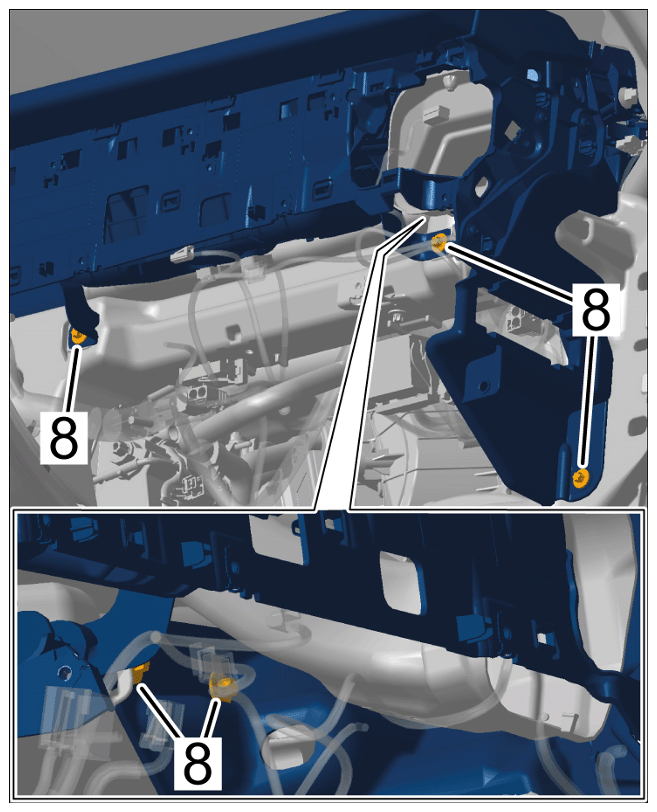

  7. Unscrew screws -8-  on the passenger's side.
    G15874287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on passenger's side

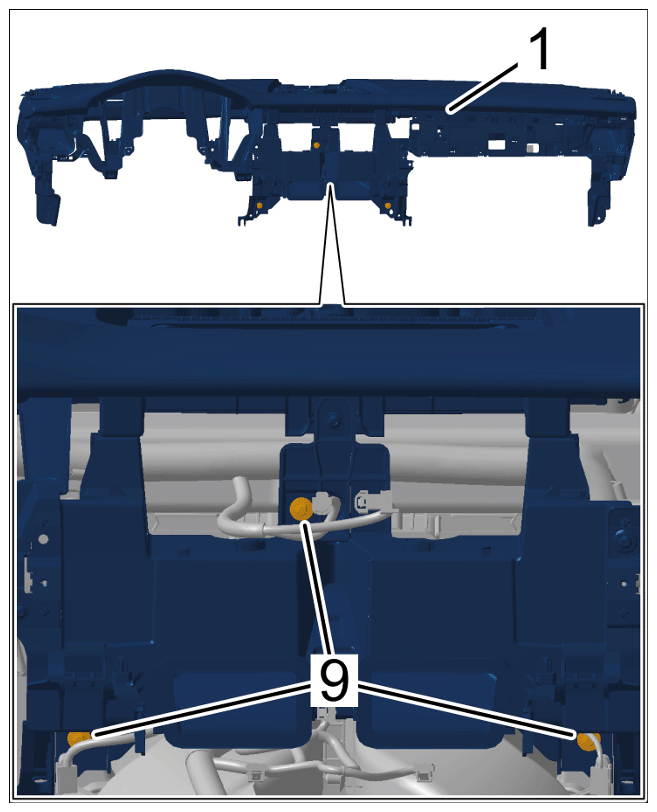

  8. Unscrew screws -9-  .
    G15874288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centre screws

    Information

    The help of another person is required.

  9. Remove dashboard on the passenger's side and guide out electric lines.
