Removing Fuel Line (High-Pressure, Right)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Hot fuel and hot fuel lines.
- Danger of scalding
→ Allow the fuel to cool down before opening line connections.
→ Wear protective gloves.
→ Wear protective goggles.
Information
The rules relating to cleanliness and instructions for working on the fuel system must always be observed before and during the work.
> WM, 2X00IN RULES RELATING TO CLEANLINESS AND INSTRUCTIONS FOR WORKING ON THE FUEL SYSTEM
> WM, 2X00IN BASIC SAFETY INSTRUCTIONS FOR WORKING WITH THE FUEL SYSTEM
Information
Check fuel line for damage following removal and replace it if necessary.
- Expose fuel line.

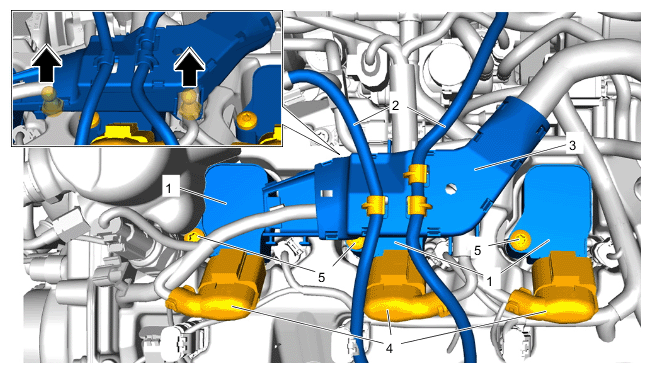

- 1.1 Release and disconnect electric plug connection -4- for ignition coils -1- .
- 1.2 Loosen oxygen sensor lines -2- from cable duct -3- .
- 1.3 Pull cable duct -3- off ball studs -arrows- and set it aside.

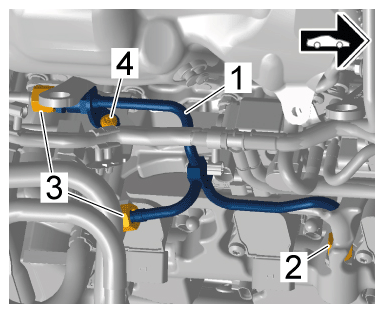

Overview of cylinder bank 1
- Remove fuel line -1-
.
- 2.1 Press sound absorber aside and unscrew union nut -2- on the rail.
- 2.2 Unscrew union nuts -3-
.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.
- 2.3 Unscrew screw -4- and guide out fuel line with holder -1- .
Removing fuel line
