Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Side strut to body | Hexagon-head bolt, M8 x 45/always replace bolts following removal | Initial tightening | 20 Nm (15 ftlb.) | ||
| Side strut to body | Hexagon-head bolt, M8 x 45/always replace bolts following removal | Final tightening | + 90° | ||
| Screw-type clamp for pressure hose | Tightening torque | 5.5 Nm (4 ftlb.) | +/- 0.5 Nm (0.4 ftlb.) | ||

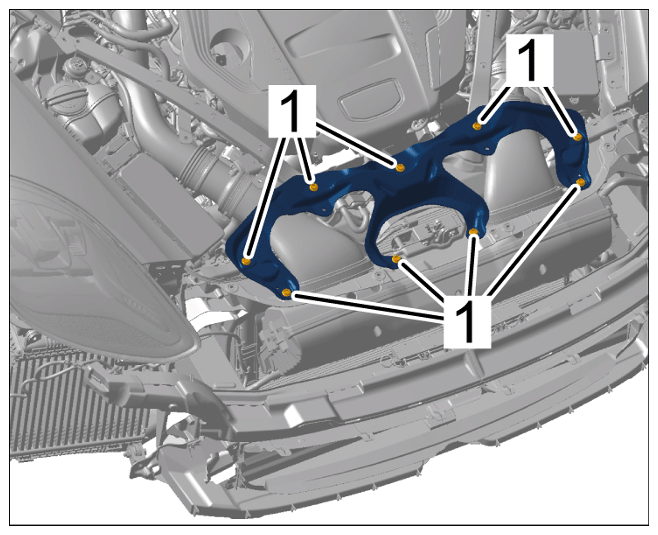

| Screw securing reinforcement to module carrier | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Reinforcement on module carrier |
|||||
| Intake scoop to air-cleaner cowl | Screw-type clamp | Tightening torque | 3.5 Nm (2.5 ftlb.) | ||
| Fastening screw for Centre intake-air distributor holder | Tightening torque | 9 Nm (6.5 ftlb.) | |||
| Fastening screws securing Centre intake-air distributor to intake-air distributor | Tightening torque | 7 Nm (5 ftlb.) |
