Replacing Sealing Ring For All-Wheel Drive Flange Shaft At The Left

WARNING: This page is about a different variant/trim than selected.

Remove sealing ring -1- on the all-wheel final drive using > T20143 - extractor tool .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left sealing ring
Fill the space between the dust lip and sealing lip on the new sealing ring with grease.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

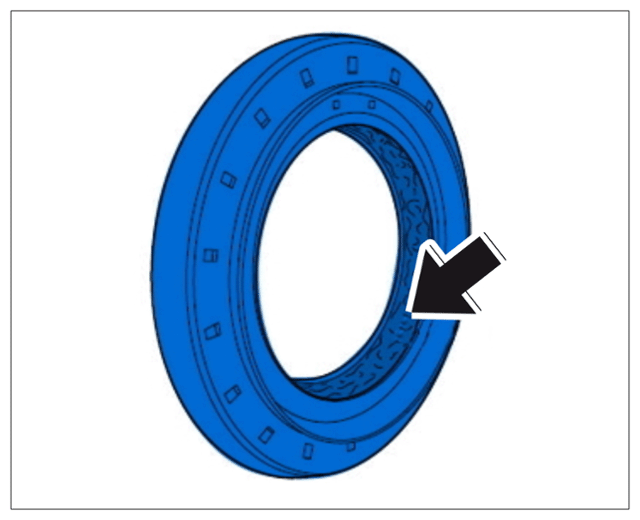

Preparing sealing ring
Fit new sealing ring -1- on the all-wheel final drive.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

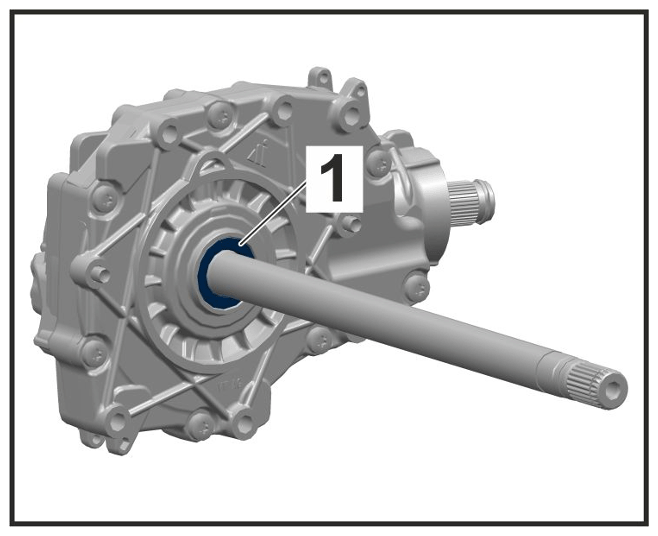

Left sealing ring
Tap in sealing ring on all-wheel final drive.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

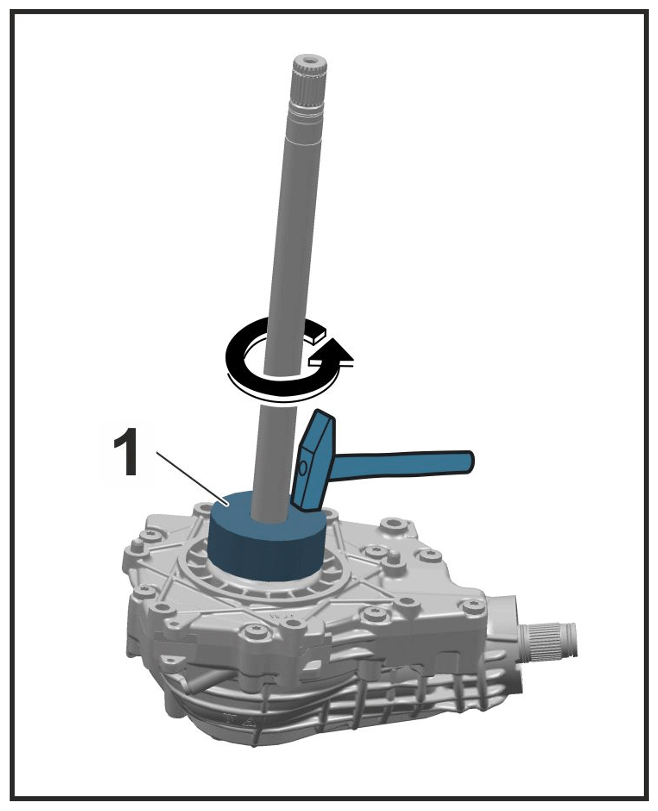

Tapping in left sealing ring
1. 4.1 > 9941 - Pressure piece-1- must be positioned on the sealing ring.
2. 4.2 Fit sealing ring by tapping it in as far as it will go using a hammer -arrow- .
