Installing Rear Output Shaft Seal

1. > 9894 - Sleeve-2-  must be positioned on the output shaft, then slide on a new seal -1-  with the raised side (lock ring) facing the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

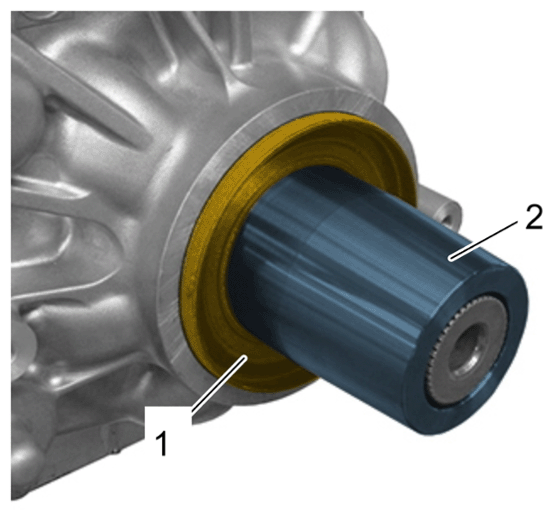

   Seal with guide sleeve

2. Tap in new seal until flush using > 9833 - pressure piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

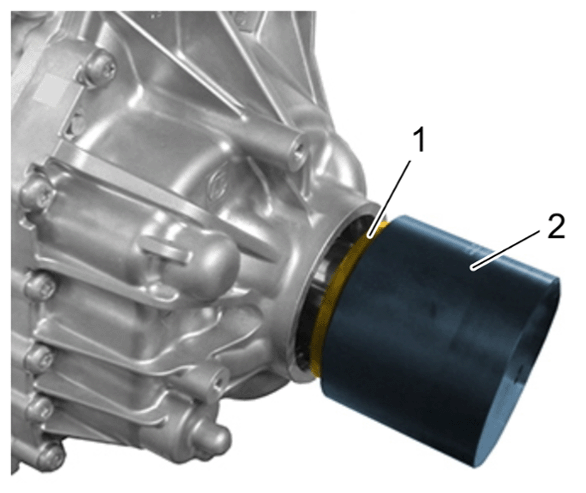

   Tapping in seal with pressure piece

3. Remove tools.
4. Screw in new standard nut ("small" collar) using > 9933 - socket for transmission shaft nut  and tighten it if the large collar nut -1-  was fitted beforehand.

   > Tightening torque 218 Nm (161 ftlb.) +/- 5 Nm (3.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

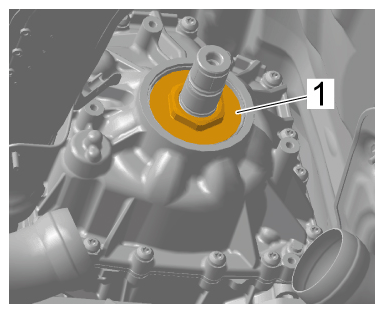

   Large collar nut on PDK output shaft

5. Fit dust boot.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

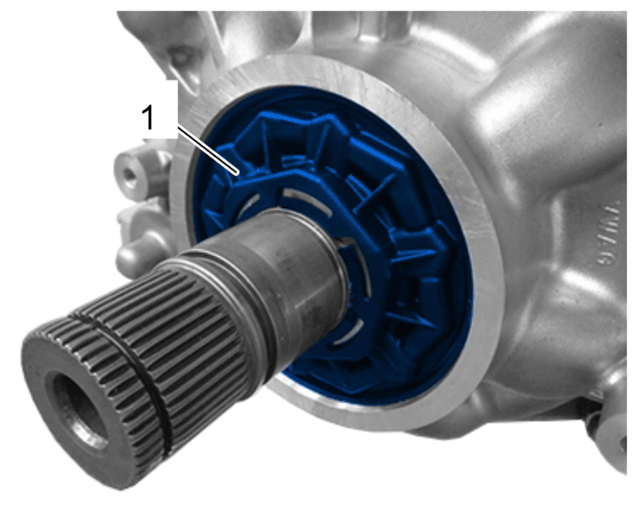

   Dust boot on output shaft

6. Fit new circlip -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

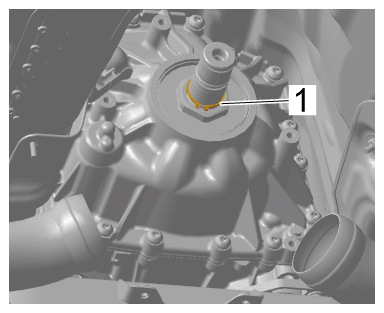

Circlip on rear output shaft
