Installing Exhaust Flap Actuator
WARNING: This page is about a different variant/trim than selected.
- Install exhaust flap actuator.
- 1.1 Move exhaust flap actuator -2-
into installation position.
- 1.2 Fit and tighten screws -3-
.
> Tightening torque 5 Nm (3.5 ftlb.)
- 1.3 Plug in and lock cable plug -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

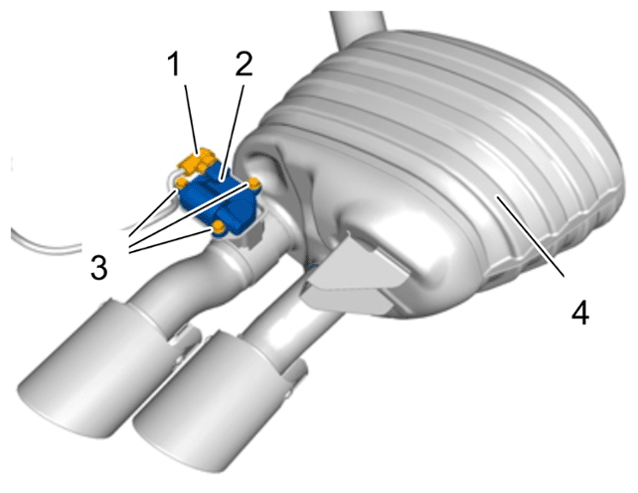

Exhaust flap actuator
