Removing Oxygen Sensor Downstream Of Catalytic Converter On Cylinder Bank 2
WARNING: This page is about a different variant/trim than selected.

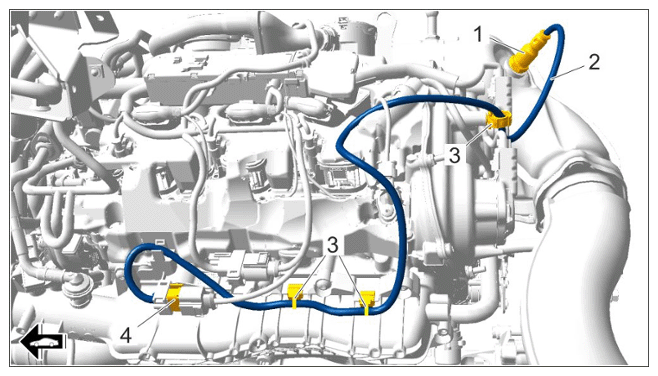

- Remove oxygen sensor downstream of primary catalytic converter on cylinder bank 2 -1-
.
- 1.1 Release and disconnect electric plug connection -4-
.
- 1.2 Unclip line -2-
from the cable clamps and guide it up and out.
- 1.3 Unscrew and remove oxygen sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oxygen sensor, cylinder bank 2
