Removing Ignition Coils For Cylinders 4 To 6
WARNING: This page is about a different variant/trim than selected.
- Expose cable duct -1-
.

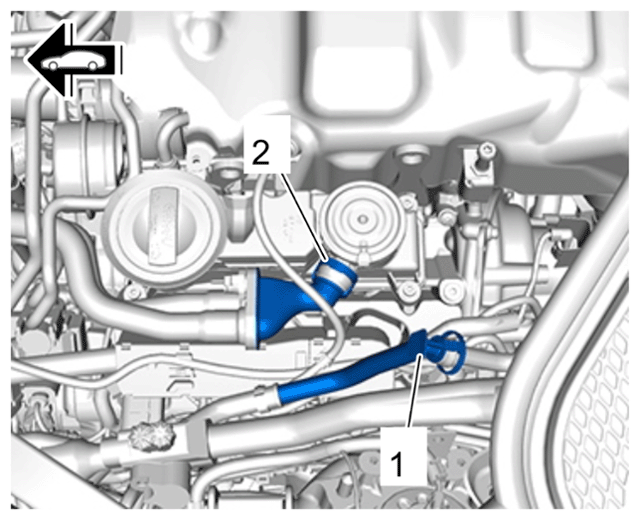

- 1.1 Release and disconnect vent line -2-
at the connection and move it forward.
- 1.2 Release and disconnect vacuum line -1-
at the connection point and move it forward.
- 1.3 Loosen oxygen sensor line -3-
from cable duct -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Vent line and vacuum line
- Loosen cable duct -1-
.

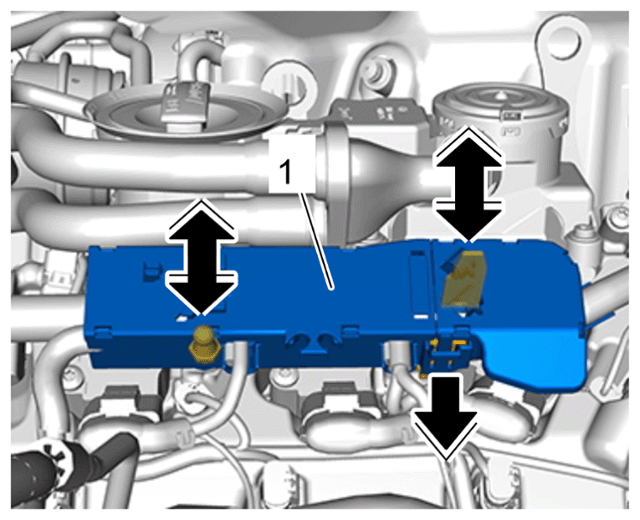

- 2.1 Actuate retaining clip -bottom right arrow-
and pull cable duct out of the guide -top right arrow-
.
- 2.2 Pull cable duct -1-
off ball pins -left arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Releasing cable duct

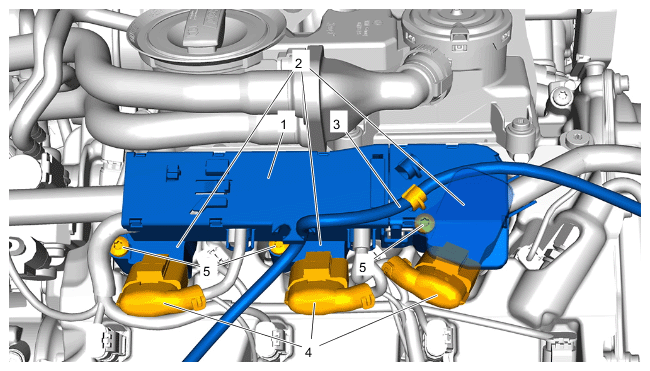

- Remove ignition coil -2-
.
- 3.1 Release and pull off cable plug -4-
.
- 3.2 Loosen and unscrew screw -5-
on the ignition coil.
- 3.3 Pull off ignition coil -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Overview of cylinder bank 2
