Removing Rear Emergency Call System Antenna

  1. Release and disconnect electric plug connection -2-  and unclip rear emergency call system antenna -1-  from the bracket -arrow-  .

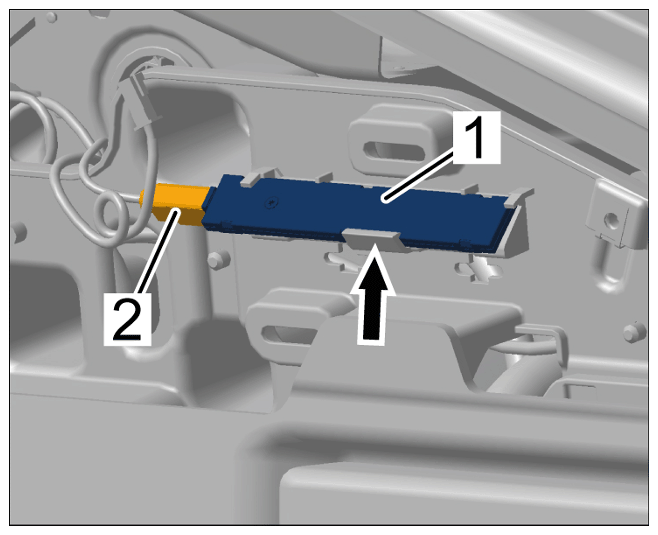

G15875837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear emergency call system antenna
